Generation Lighting 3VNMR56 Vision 56 LED

Formerly known as Monte Carlo Fans - now is
Visual Comfort Fan Collection

Similar to the popular Clarity hugger ceiling fan series, the 56" Vision by Sean Lavin is sleek and modern but comes with a downrod to bring the fan down into the room when ceiling space allows.

Indoor - Outdoor Fan

From the brand formerly known as Monte Carlo

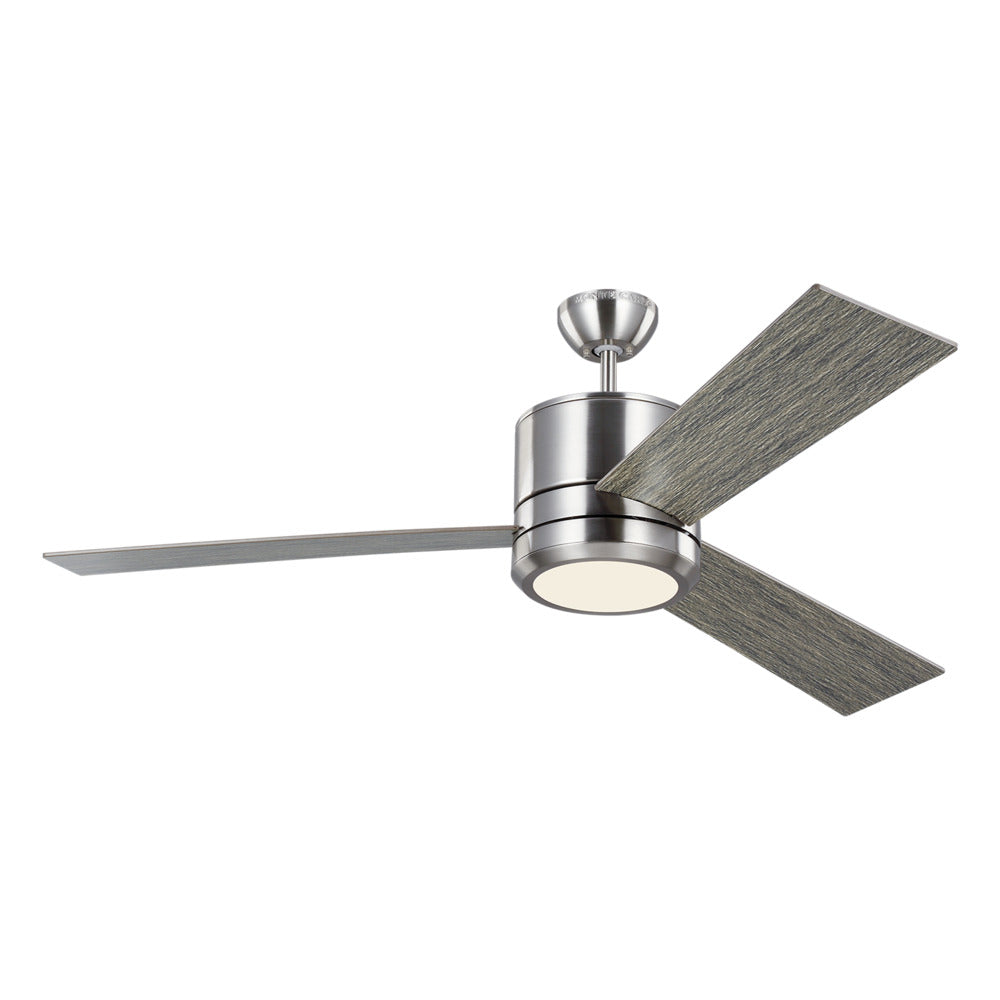

The Sean Lavin Vision 56 in Brushed Steel W/ LGWO Blades features a 172.0 X 20.0 4-speed motor with a Twelve-degree blade pitch. Similar to the popular Clarity hugger ceiling fan series, the Vision 56 is sleek and modern but comes with a downrod to bring the fan down into the room when ceiling space allows. It's offered in four finish combinations to suit virtually any decor requirement. Damp-rated for indoor/outdoor use, the Vision 56 also comes with a four-speed wall control with an LED dimmer.

Designer: Sean Lavin

Fixture is supplied with 20 watt integrated LED light source

Dimmable

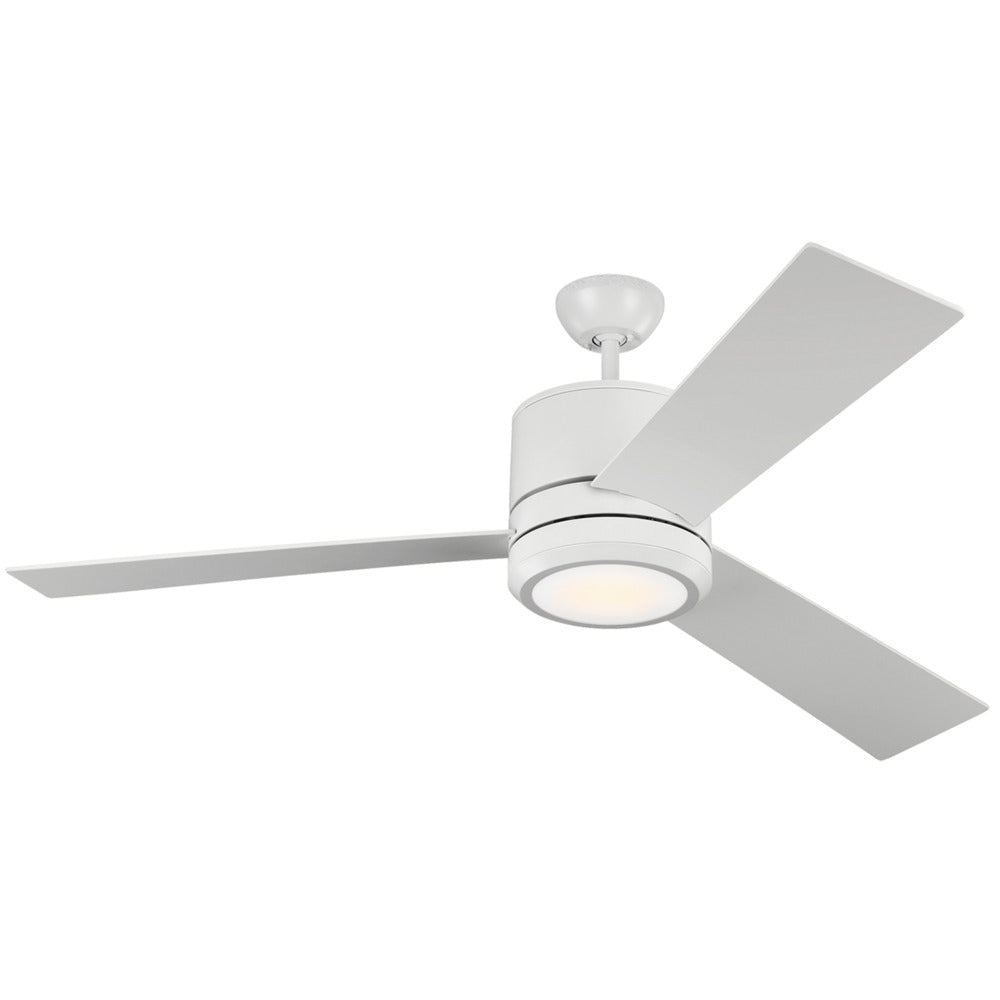

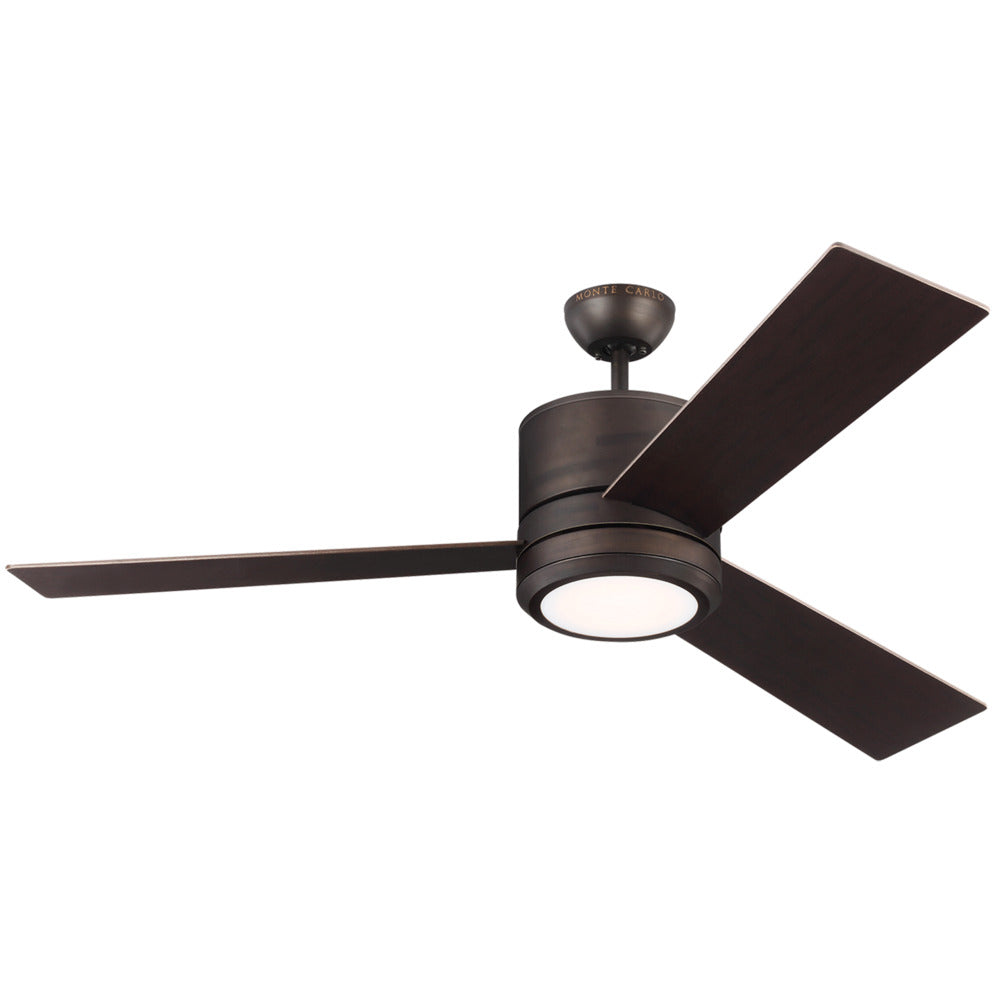

Available in Brushed Steel W/LGWO Blades, Roman Bronze, and Matte White finishes

Six-speed, reversible, handheld/wall-mountable remote control included

Damp Rated

Dimensions: D:56'' H:14''

Item Weight: 17.16

Fan Diameter: 56

Overall Height: 14

Blade to Ceiling: 12

Fan Style: Traditional

Remote Included: Yes

Number of Blades: 3

Blade Pitch: 12

Blade Finish 1: Light Grey Weathered Oak

Blade Finish 2: Light Grey Weathered Oak

Motor Size: 172.0 X 20.0 mm

Motor Type: AC

Capacitor Value (if app.)4.5uF/350V/105C

CFM (High): 5203

Watts (High): 64

CFM/Watt (High): 81

CFM (Low): 1216

Watts (Low): 7

CFM/Watt (Low): 174

Downrod Length: 4.5

Downrod Diameter: 0.5

Min. Ceiling Height: 8

Canopy Style: Downrod

Canopy Diameter: 5.12

Max Blade-to-Ceiling Height: 12

Min Blade-to-Ceiling Height: 10.7

Standard Weighted Average Airflow: 3334

Standard Energy Use Wave: 37

Standard Estimated Yearly Energy Cost: 10

Standard Efficiency: 89

Remote Control Type: Wall Mount Control, 4-speed, Dimmer and Manual Reverse

Light Kit Adaptable:

Light Kit Included: Yes w/ blanking plate

Canopy: D:5 1/8'' H:2 1/4'' Round

Switch Location: N/A

Switch Type: N/A

Shade/Glass: frosted acrylic lens

Max Ceiling

Slope: 30

Lamping: 1 Array Integrated 20 watt light bulb

Temperature (°K): 2700

CRI: 90

Lumens: 950

Number of Bulbs: 1Array

Max Wattage: 20

NUMBER of Bulbs2:

Bulb Included: Yes

Bulb Base: 19 - Integrated

Bulb Type: LED - Array

Bulb Beam Spread:

Bulb Dimming Range Min: 10 - Bulb Dimming Range Max: 100

Bulb Rated Life: 50000

Safety Rating: C-UL-US

Safety RATING LOCATION: damp
