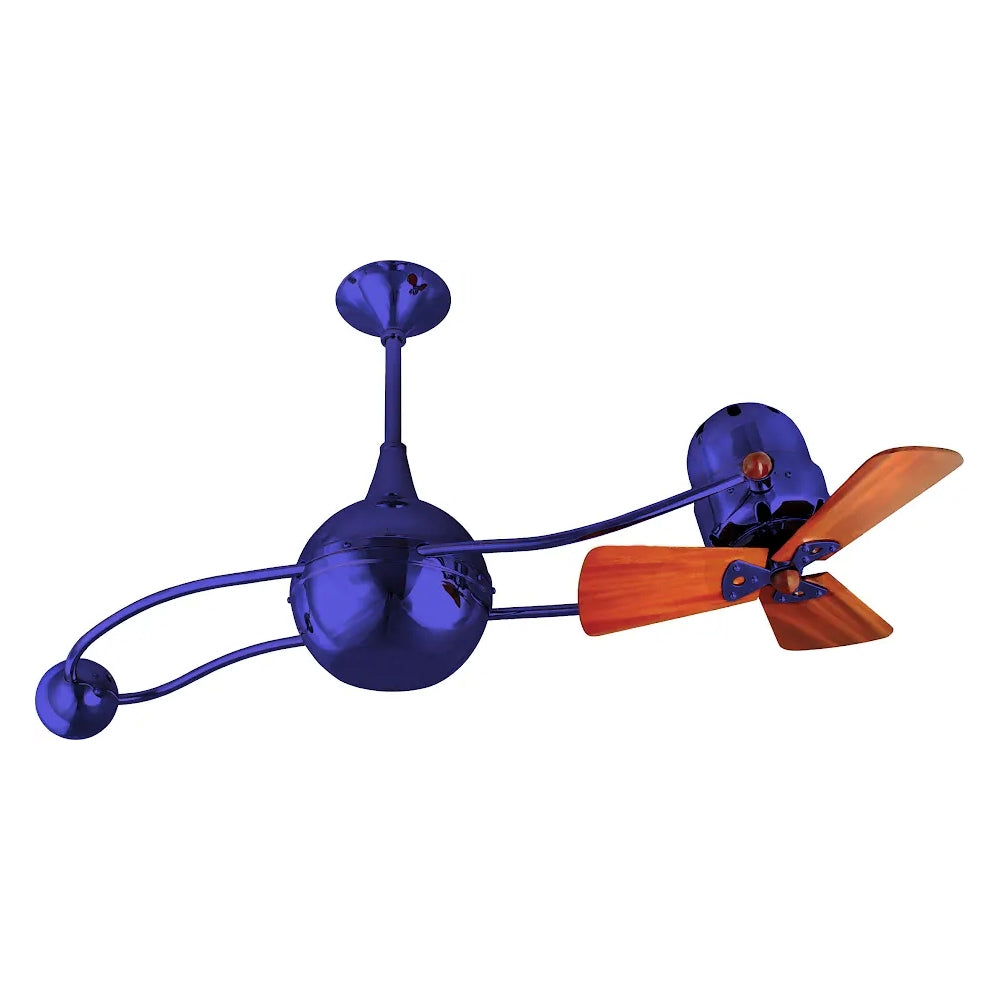

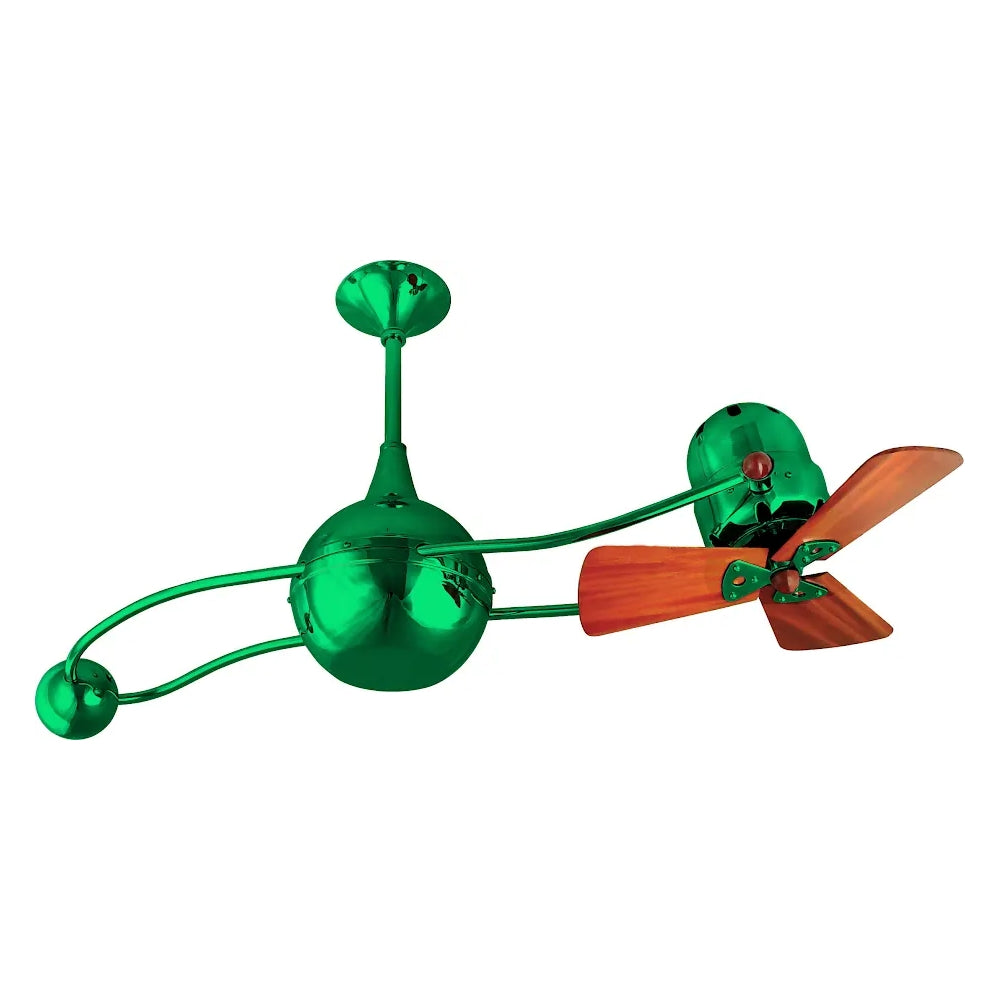

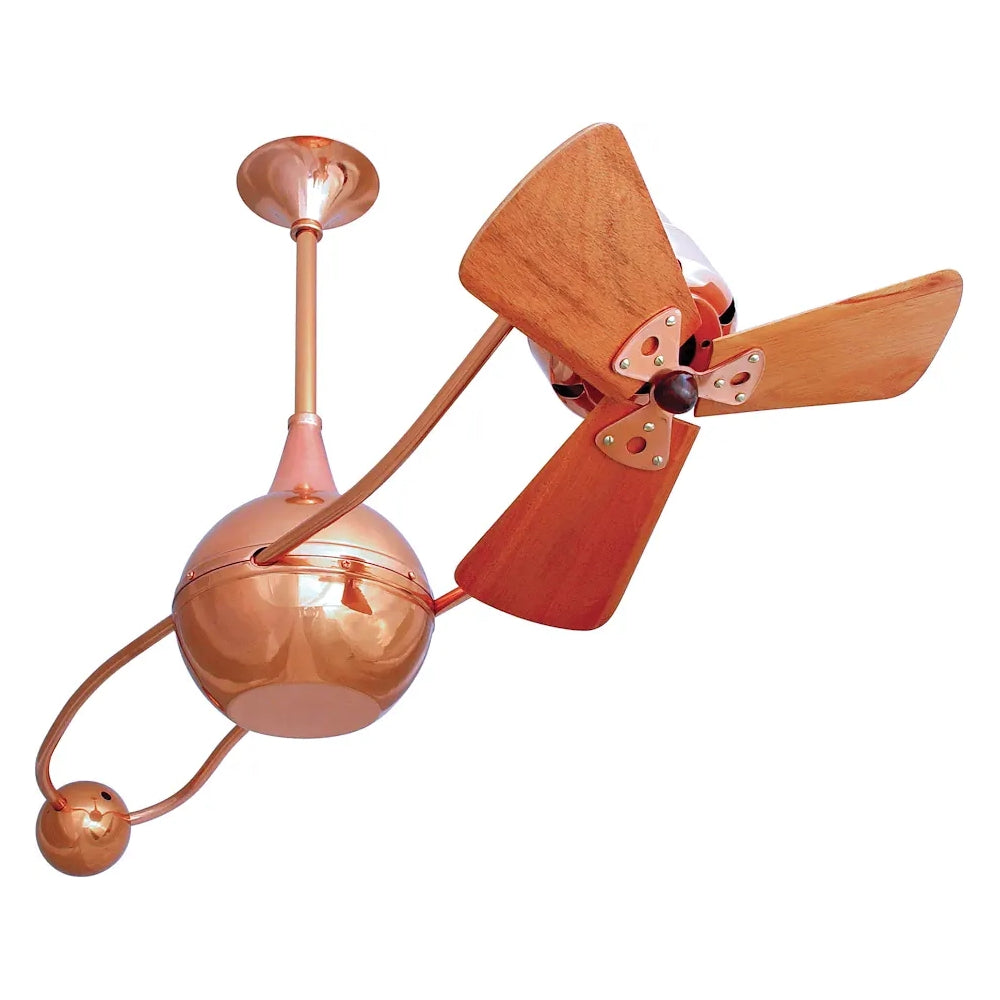

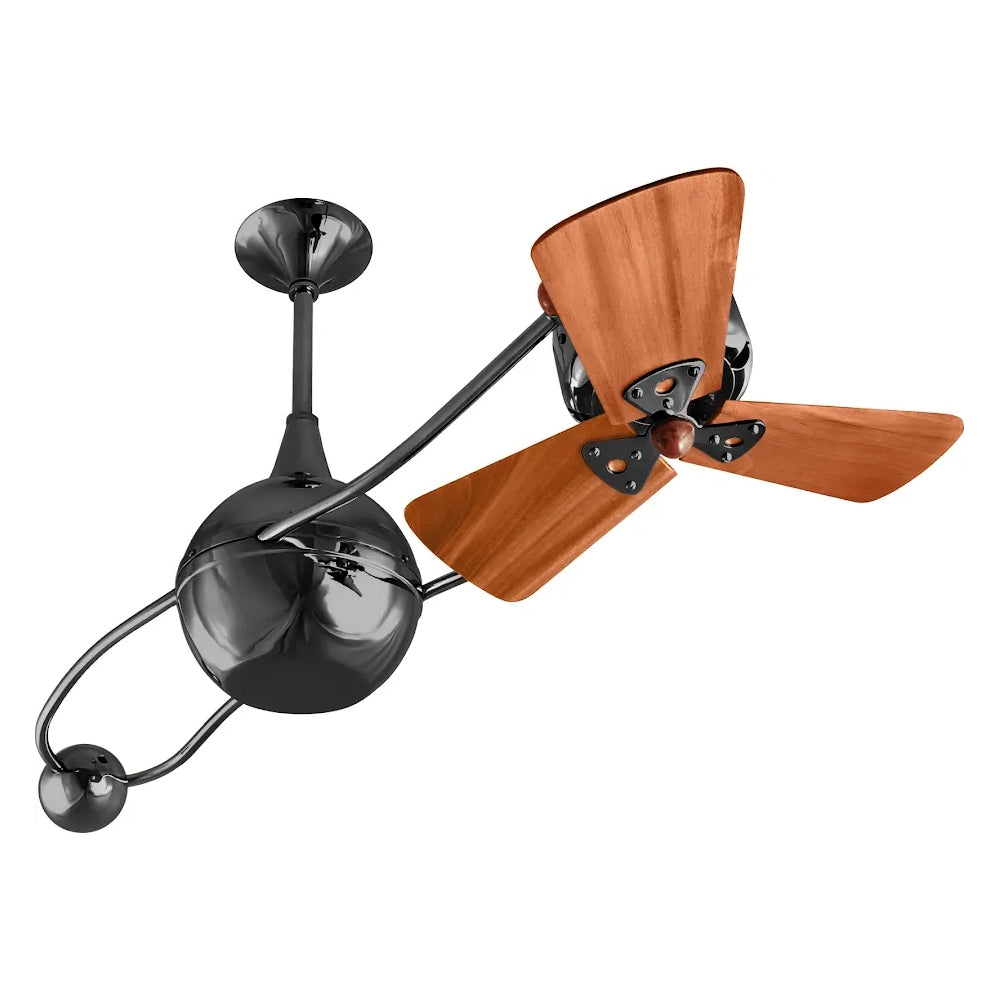

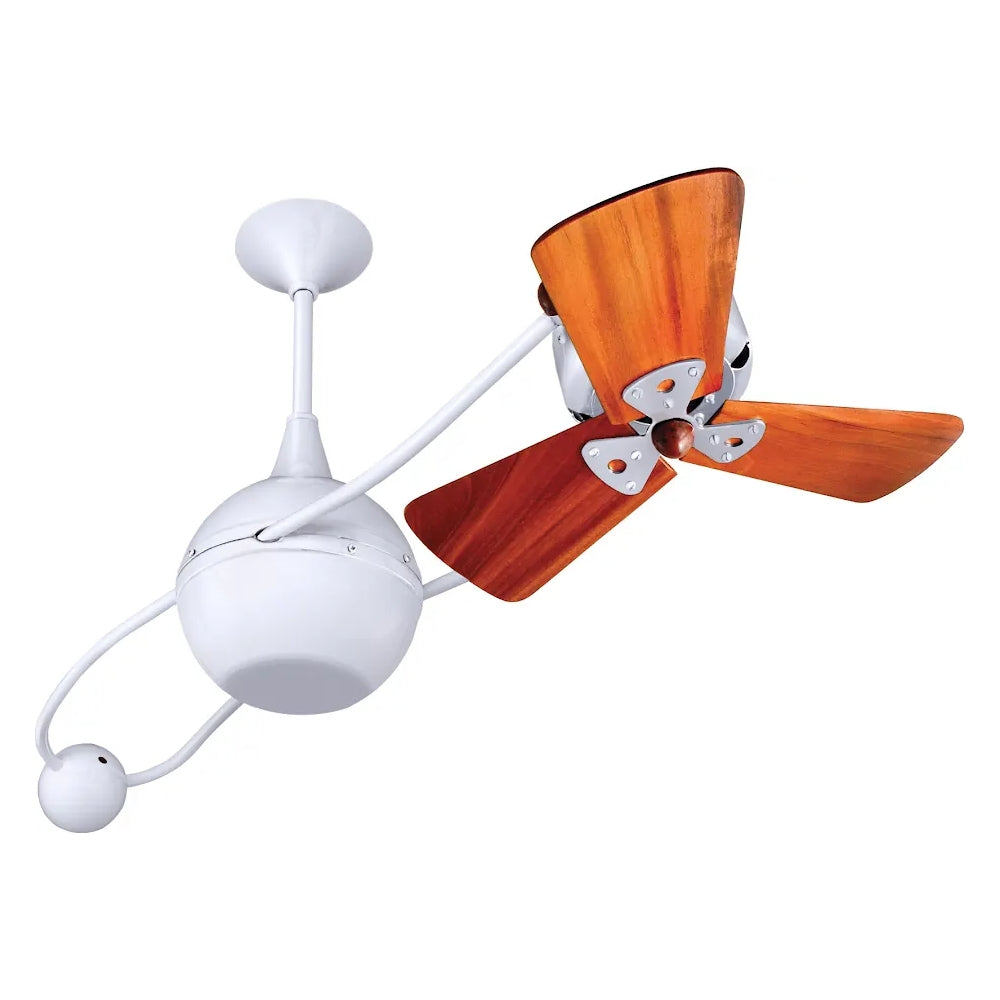

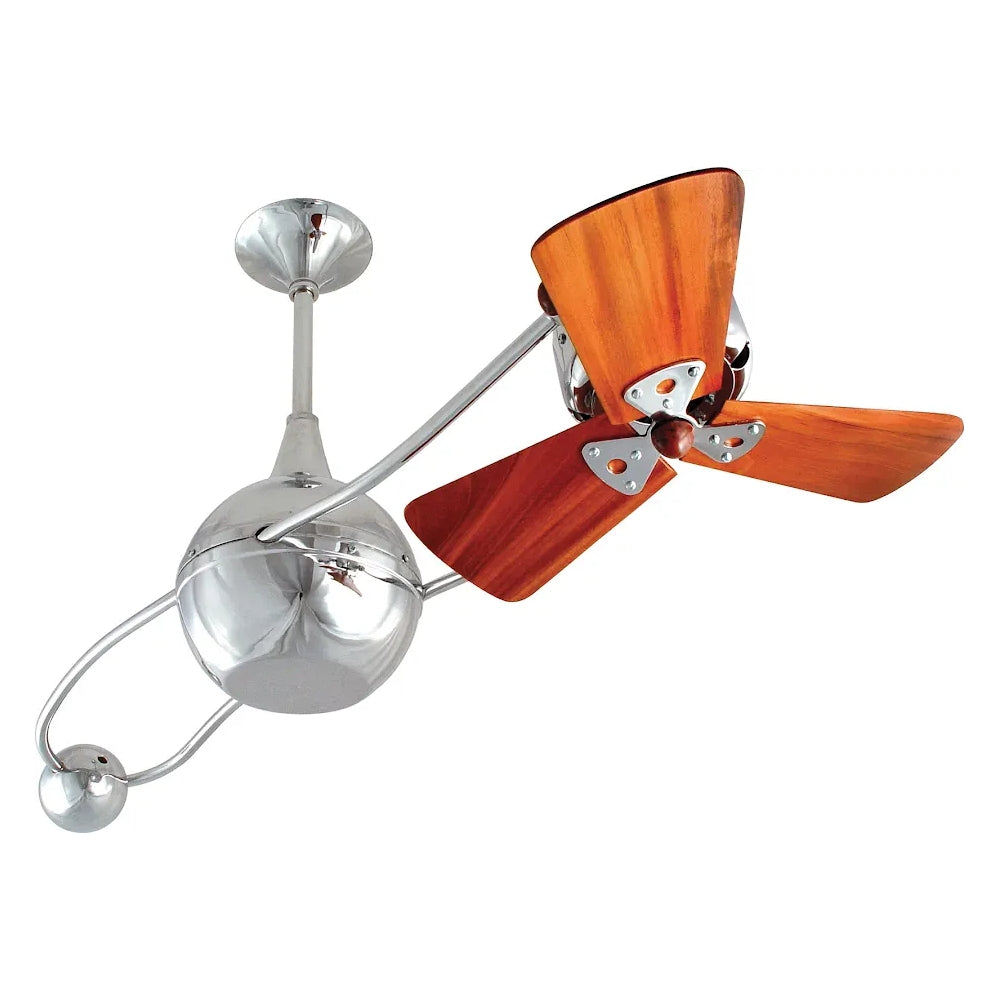

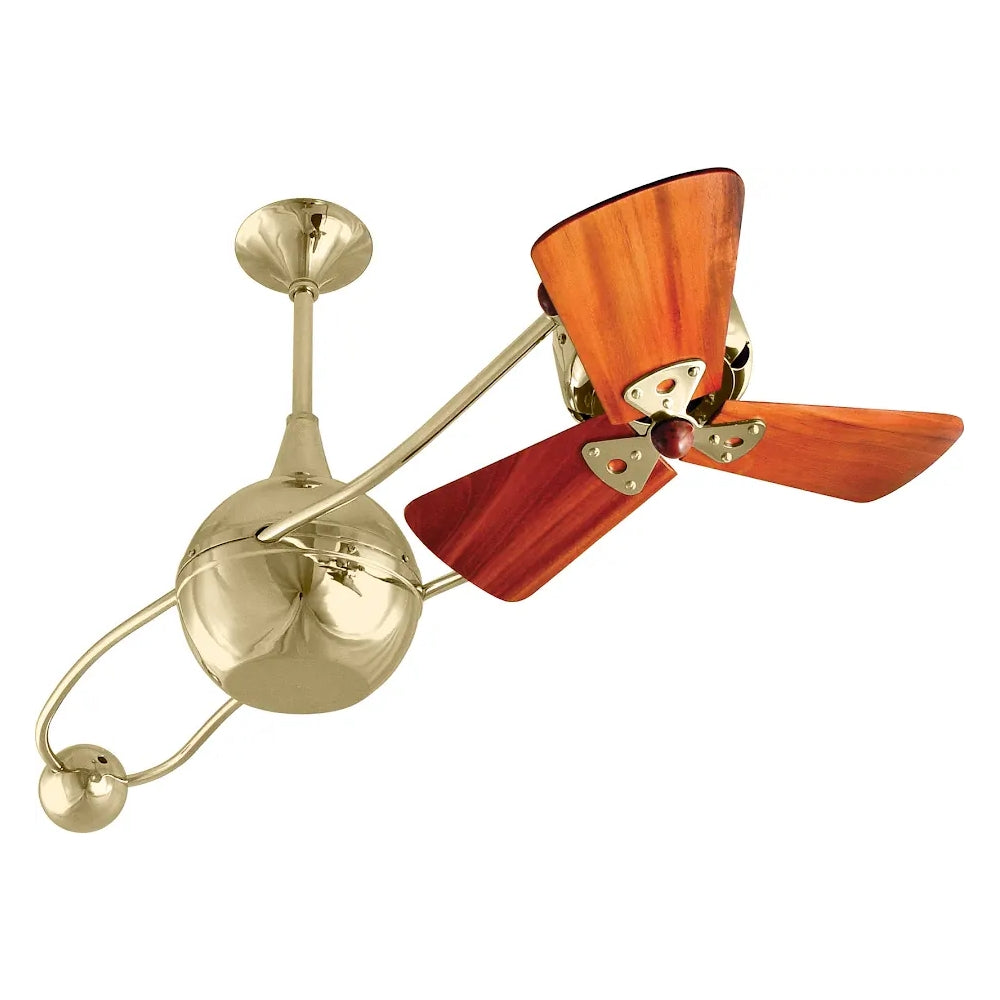

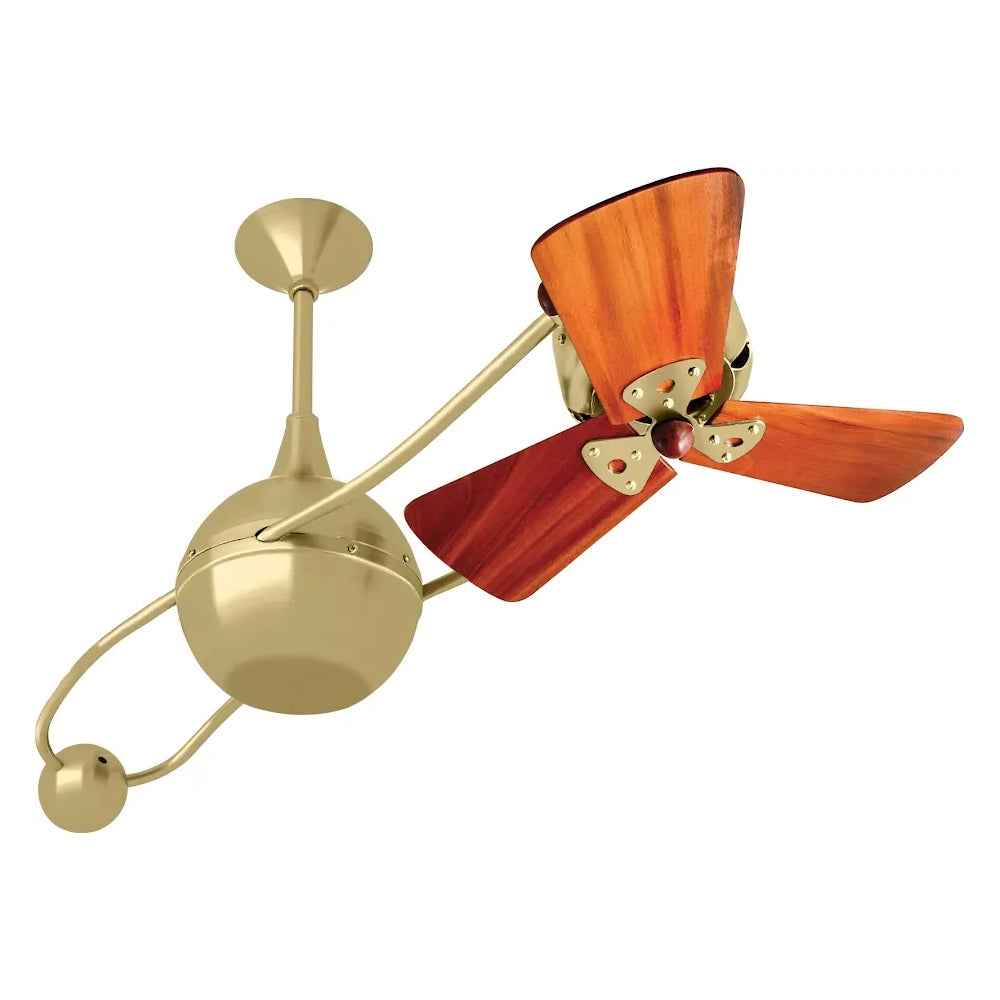

Matthews Fan B2K-WD Brisa 2000 Ceiling Fan

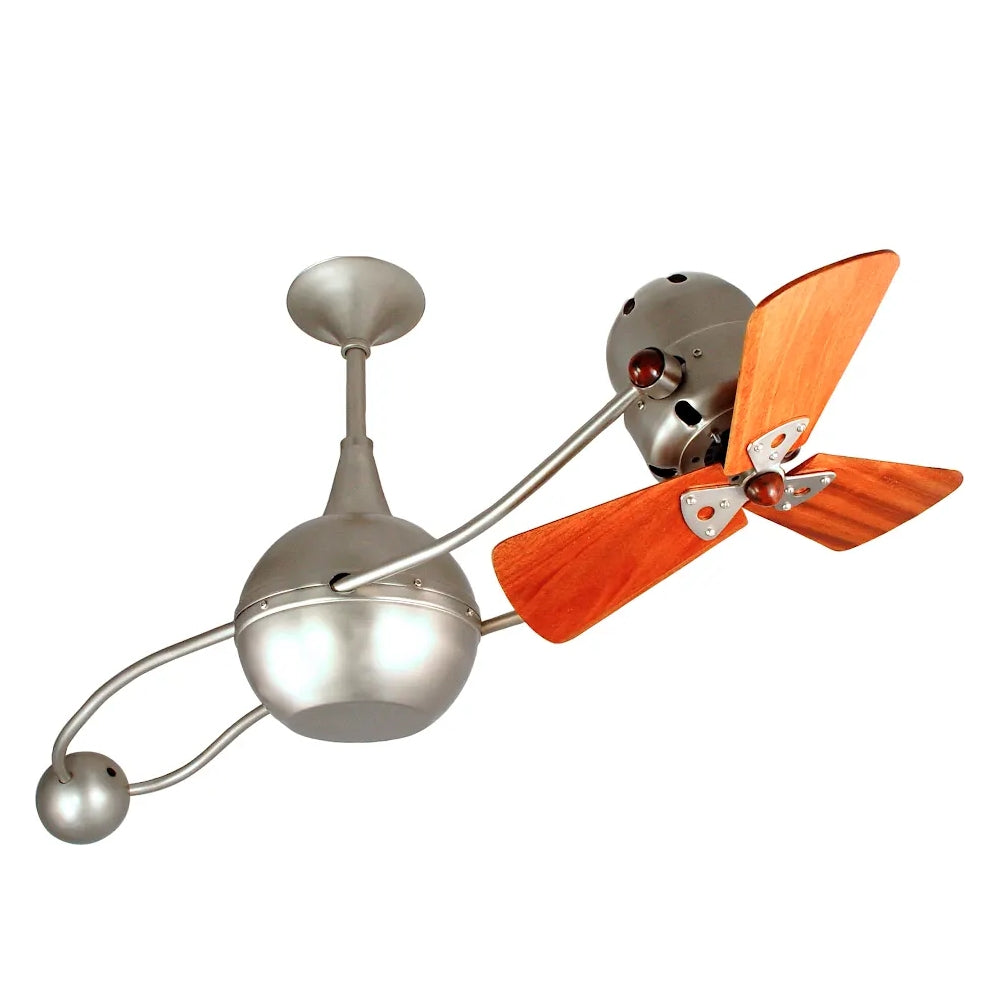

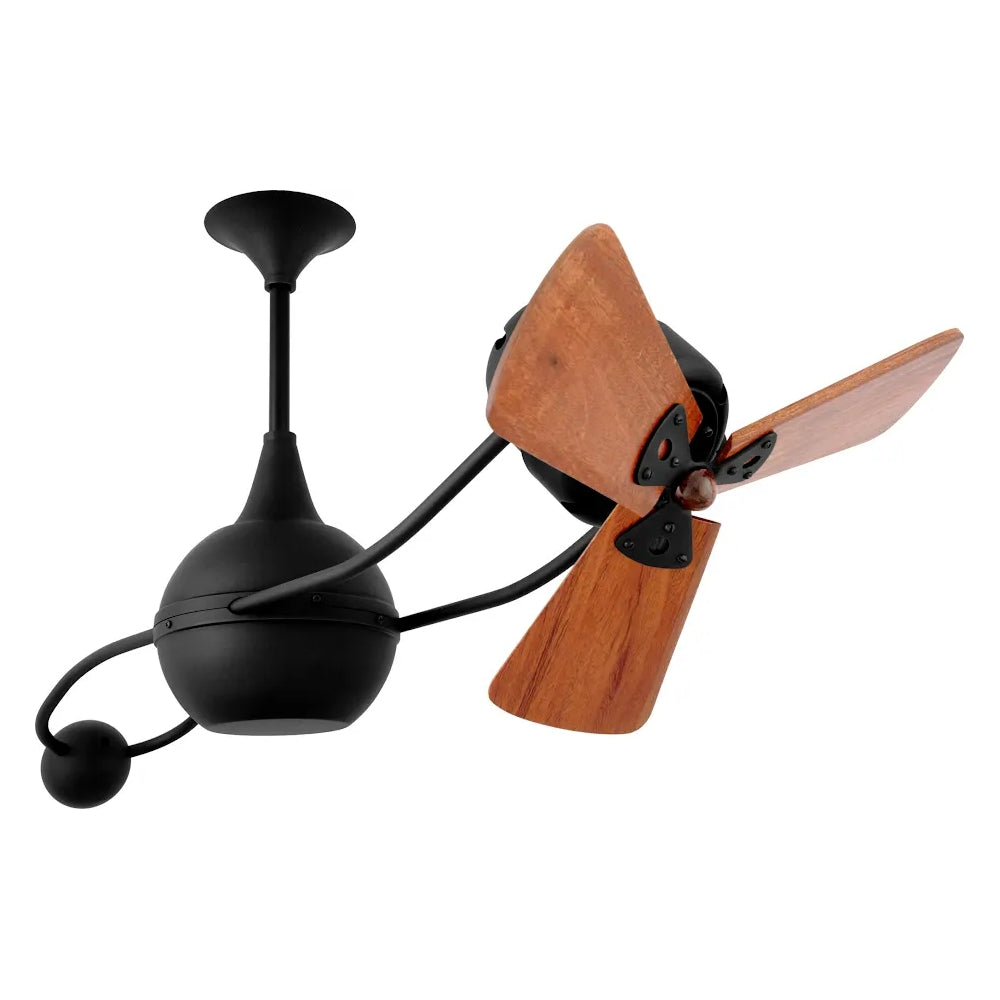

Like satellites orbiting a planet, the Brisa's select mahogany blades and lunar counterweight gently revolve about its spherical gear housing. The fan head can be infinitely positioned in a 180-degree arc for optimum air movement; the greater the angleof the motor to the horizontal support rods (up or down), the faster the axial rotation. A slow, controlled axial rotation is achieved by both fan head position and fan blade speed.

Features

• Matthews rotational fans circulate heat and air conditioning more efficiently than traditional paddle fans.
• Constructed of cast aluminum, heavy spun and stamped steel, the Brisa carries a limited lifetime warranty.
• Each unique motor mount and fan head knob is made of genuine marbleized Bakelite.
• The Brisa is available with the following blade options:
• metal blades with decorative metal blade guards
• solid, ecologically harvested Brazilian mahogany blades without blade guards
• metal blades with metal safety cages for use in low ceiling applications (7 ft in US / 8.2 ft in Canada)Standard Equipment:
• Lutron decora-style SFS-5E fully variable wall switch in white
• 10" downrod. 5", 20", 30", 48" or 72" downrods available. Downrods can be easily field cut; they are not threaded.
• Flat ceiling canopy. Not compatible with vaulted ceiling canopy accessory.
• Metal fan heads with protective powder or clear coatings are suitable for Damp Location.
• Safety cages available for low ceiling applications.
• Damp location with powder or clear coat only. Not recommended for salt water/ocean front applications.

Specification Details

• IP Rating: Not available
• Amps: 2.0
• Motor Speeds: Fully Variable
• Motor Type AC/DC: AC
• Included Control - Standard Equipment: Wall Control
• Number of Blades: 3
• Integrated Light Kit, Optional Light Kit, No Light Kit: NO
• Socket Type: N/A
• Socket Number: N/A
• Max wattage: N/A
• Lumens: N/A
• CRI: N/A
• Kelvin Temperature: N/A
• Longevity of Lamp/Array in Hours: N/A
• Dimmable LK Yes/No: N/A
• Actual Weight Fan & Shipping Container in Lbs: 28 Lbs
• Length in Inches: 36
• Width in Inches: 16
• Height in Inches: 12
• Extension from Wall: N/A
• Overall Height: 7" Plus Downrod
• Depth: 7" Plus Downrod
• Downrod OD: 3/4"
• Location Rating: Interior/Exterior Damp
• 120 V Safety Rating: UL, CUL

SKU	RPMs	CFM	Watts	CFM/Watt	FTC Efficiency PDFs	Blade Pitch	Width/Dia.
B2K-BK-WD	1336	2376	52.44	45.31	Brisa 2000 16in Wood Blades_102717	19 Degrees	40"
B2K-BK-MTL	1205	1265	55.15	22.94	Brisa 2000 12in Metal Blades_102717	31 Degrees	39"
