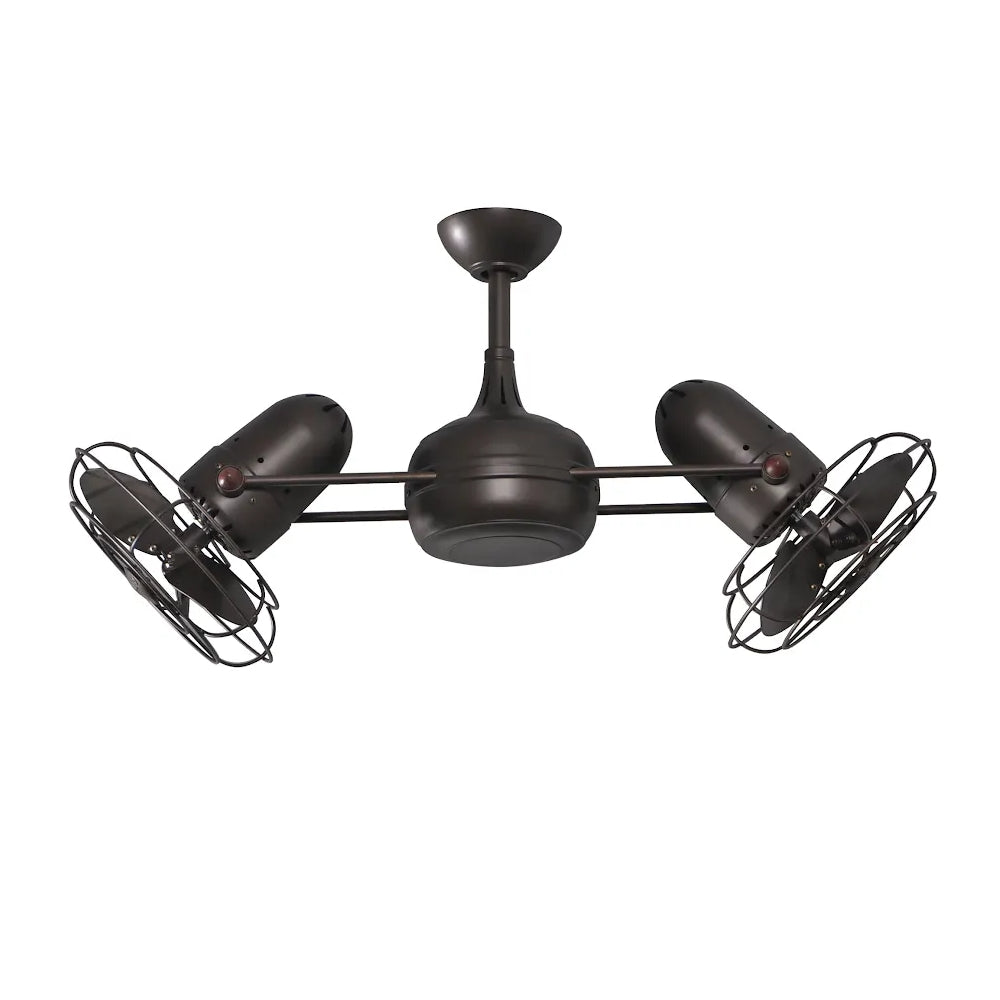

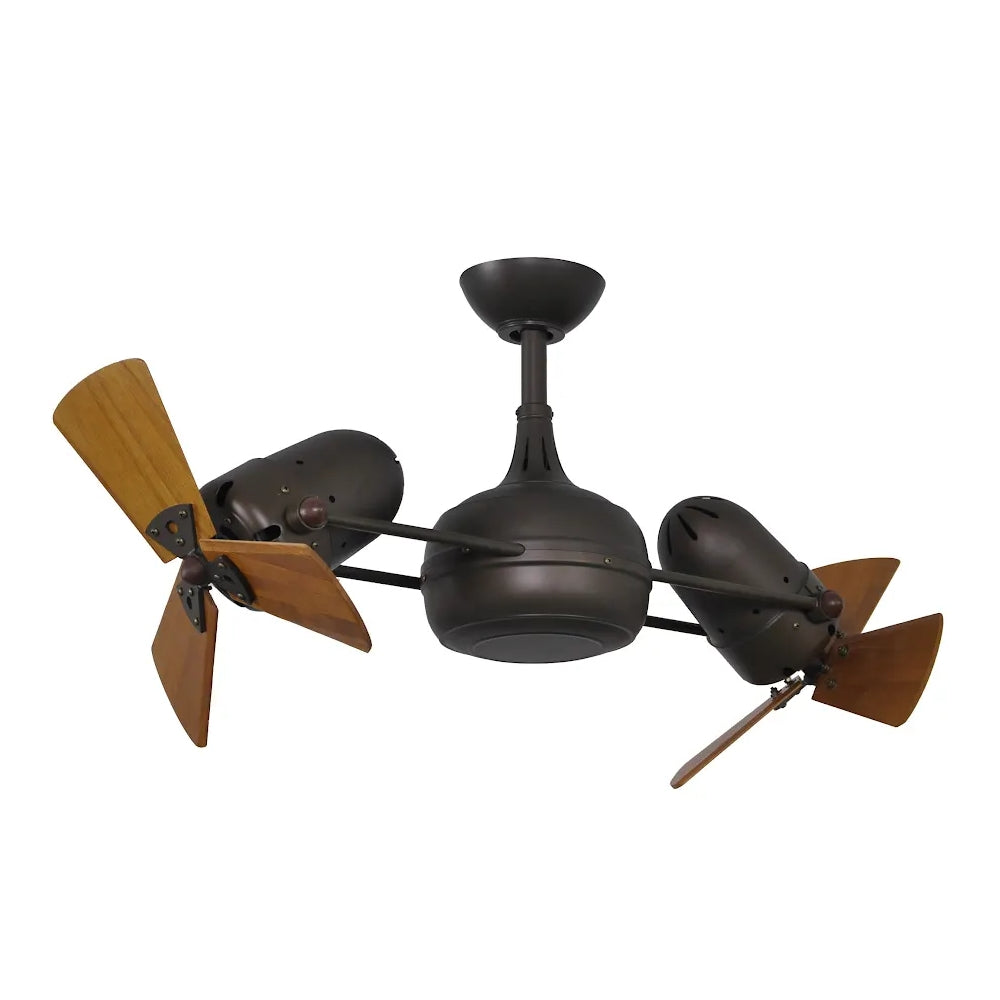

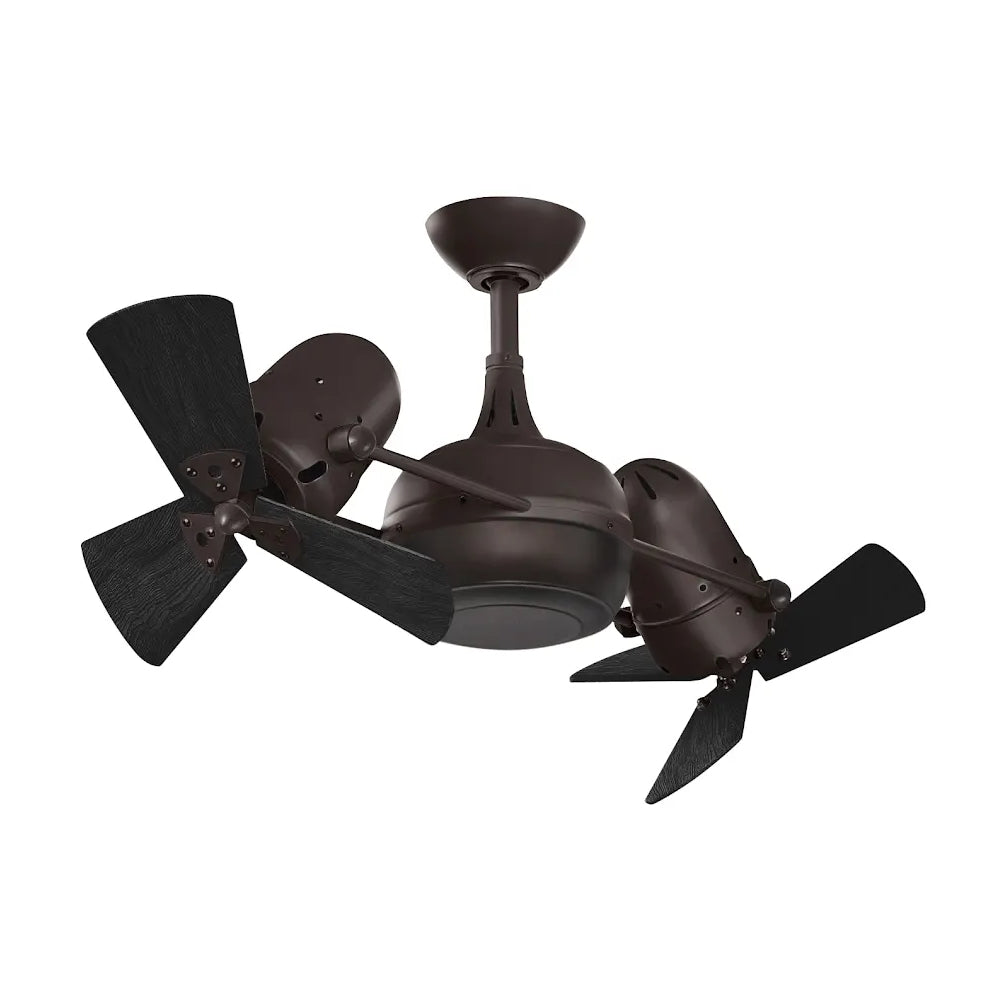

Atlas Dagny Ceiling Fan in Textured Bronze

The double-headed rotational ceiling fan, Dagny, with cylindrical central housing and straight, parallel arms, is designed in the retrospective aesthetic. The Dagny offers fluid lines and quiet axial rotation. The motor heads can be infinitely positioned in 180-degree arcs for optimum air movement; the greater the angles of the motors to the horizontal support rods (up or down), the faster the axial rotation. A slow, controlled axial rotation is achieved by both motor head position and fan blade speed. Matthews rotational fans circulate heat and air-conditioning more efficiently than traditional paddle fans.

Features

• Limited Lifetime Warranty
• Standard equipment:
• One downrod of 10". 5", 20", 30", 48" or 72" downrods also available.
• Hand-held and wall-mountable 3-speed remote control.
• Vaulted ceiling mount canopy for up to 29 degrees.
• Safety cages available for low ceiling applications.
• The Dagny is compatible with an accessory Lutron decora-style wall control: SFSQ-LF
• Damp location: All standard finishes. Not recommended for salt water/ocean front applications

Specification Details

• IP Rating: IP20
• Amps: 1
• Motor Speeds: 3-Speed
• Motor Type AC/DC: AC
• Included Control - Standard Equipment: Remote Control
• Number of Blades: 6
• Integrated Light Kit, Optional Light Kit, No Light Kit: NO
• Socket Type: N/A
• Socket Number: N/A
• Max wattage: N/A
• Lumens: N/A
• CRI: N/A
• Kelvin Temperature: N/A
• Longevity of Lamp/Array in Hours: N/A
• Dimmable LK Yes/No: N/A
• Actual Weight Fan & Shipping Container in Lbs: 32 Lbs
• Length in Inches: 40
• Width in Inches: 16
• Height in Inches: 17
• Extension from Wall: N/A
• Overall Height: 14" Plus downrod
• Depth: 14" Plus downrod
• Downrod OD: 1"
• Location Rating: Interior/Exterior Damp
• 120 V Safety Rating: UL, CUL

SKU	RPMs	CFM	Watts	CFM/Watt	FTC Efficiency PDFs	Blade Pitch	Width/Dia.
DG-TB-WD	1445	3393.42	100.4	33.8	DG-FTC Label_072417	19 Degrees	38"
DG-TB-MTL	1448	3168.94	80.69	39.27	DG-FTC Label_072418	31 Degrees	40"
