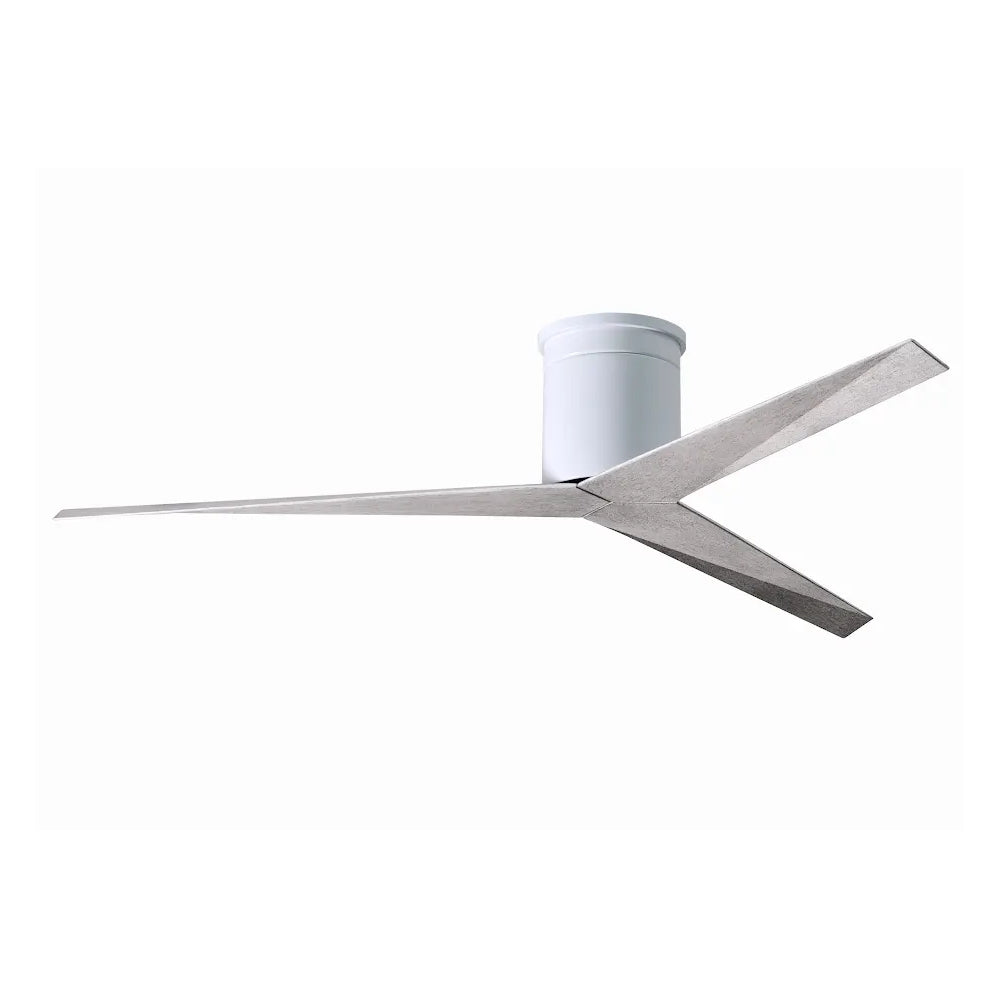

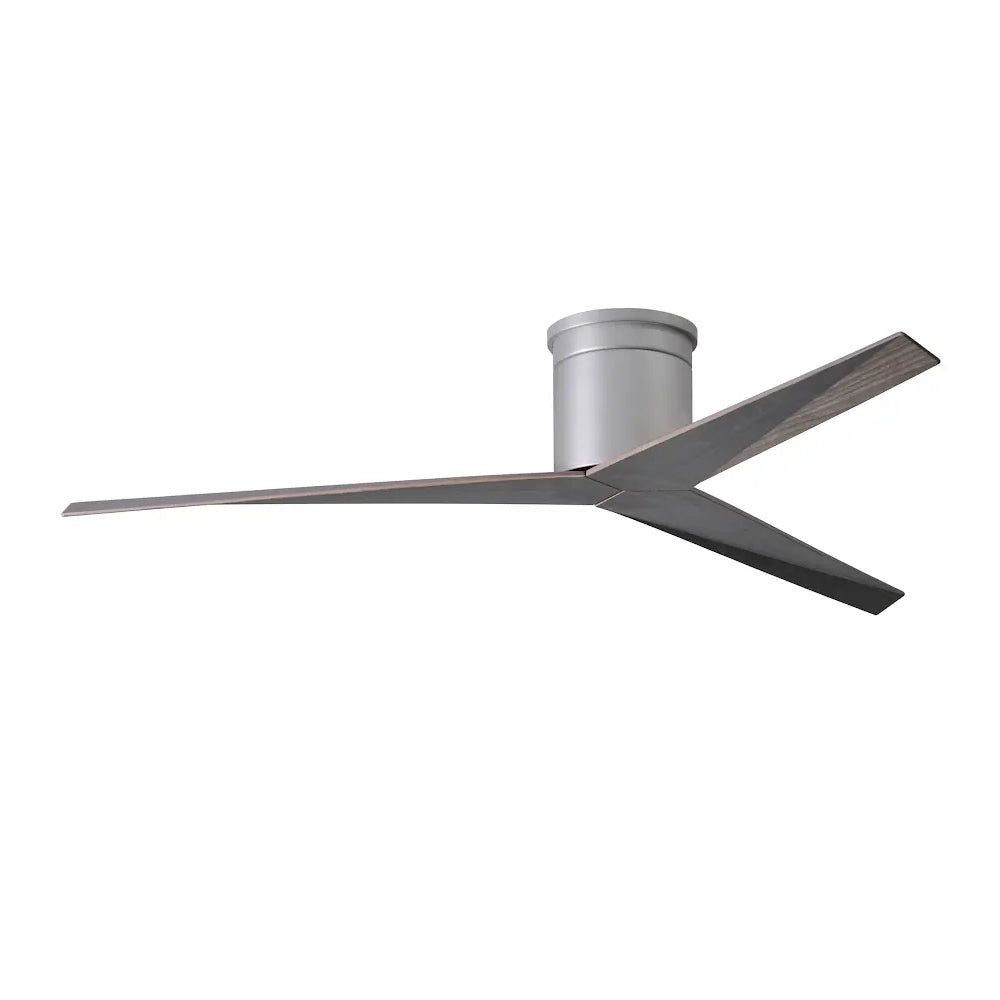

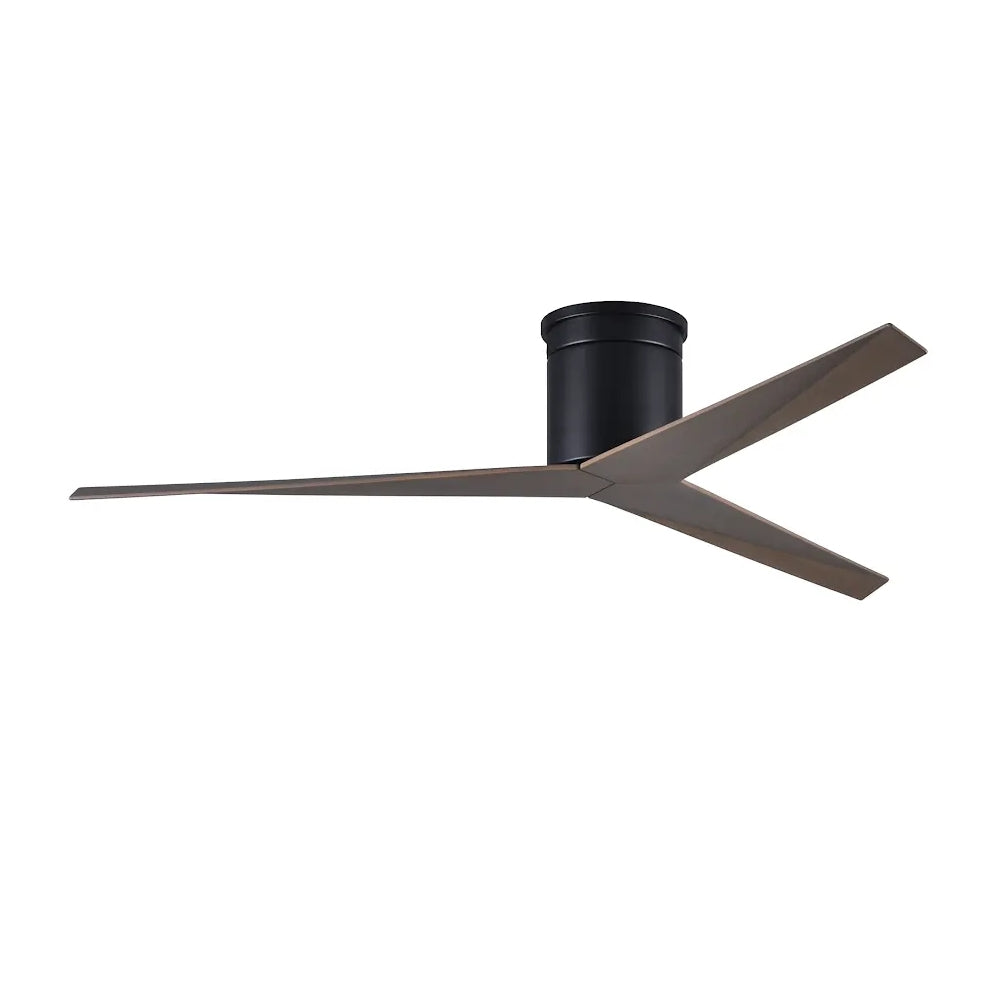

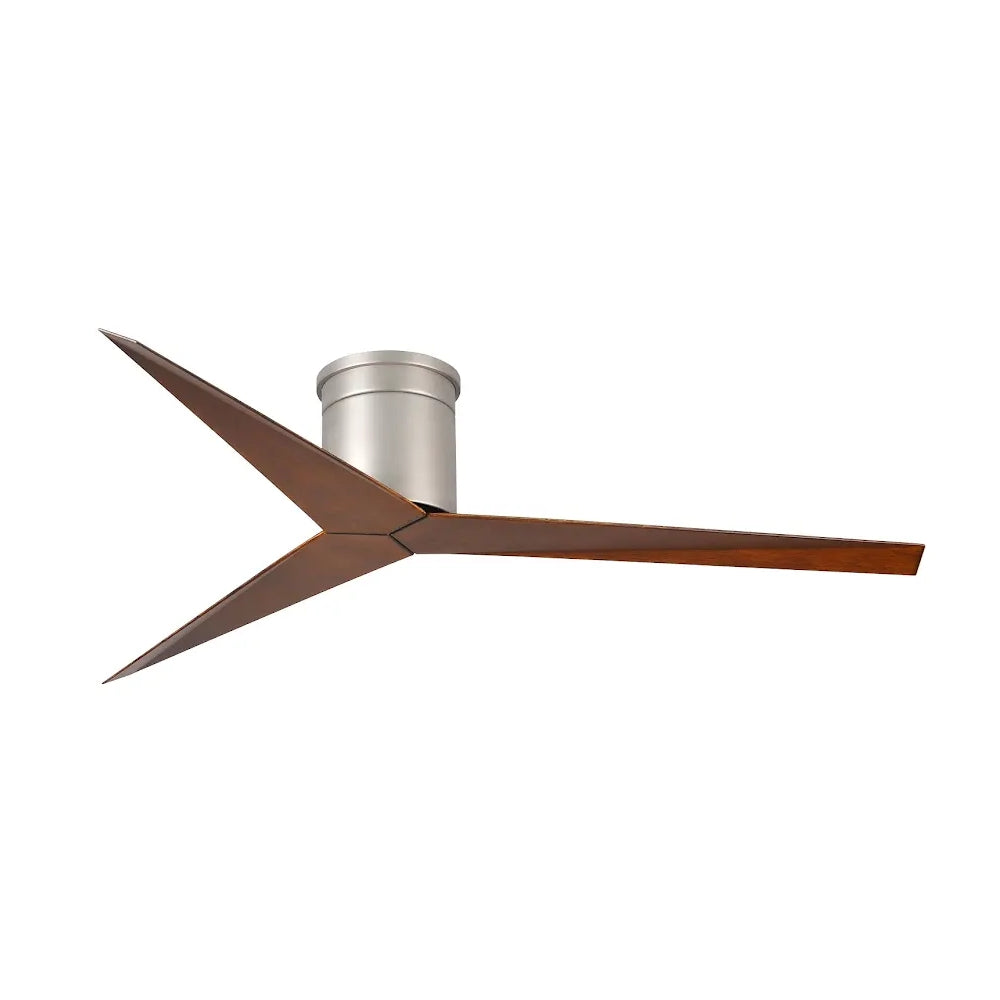

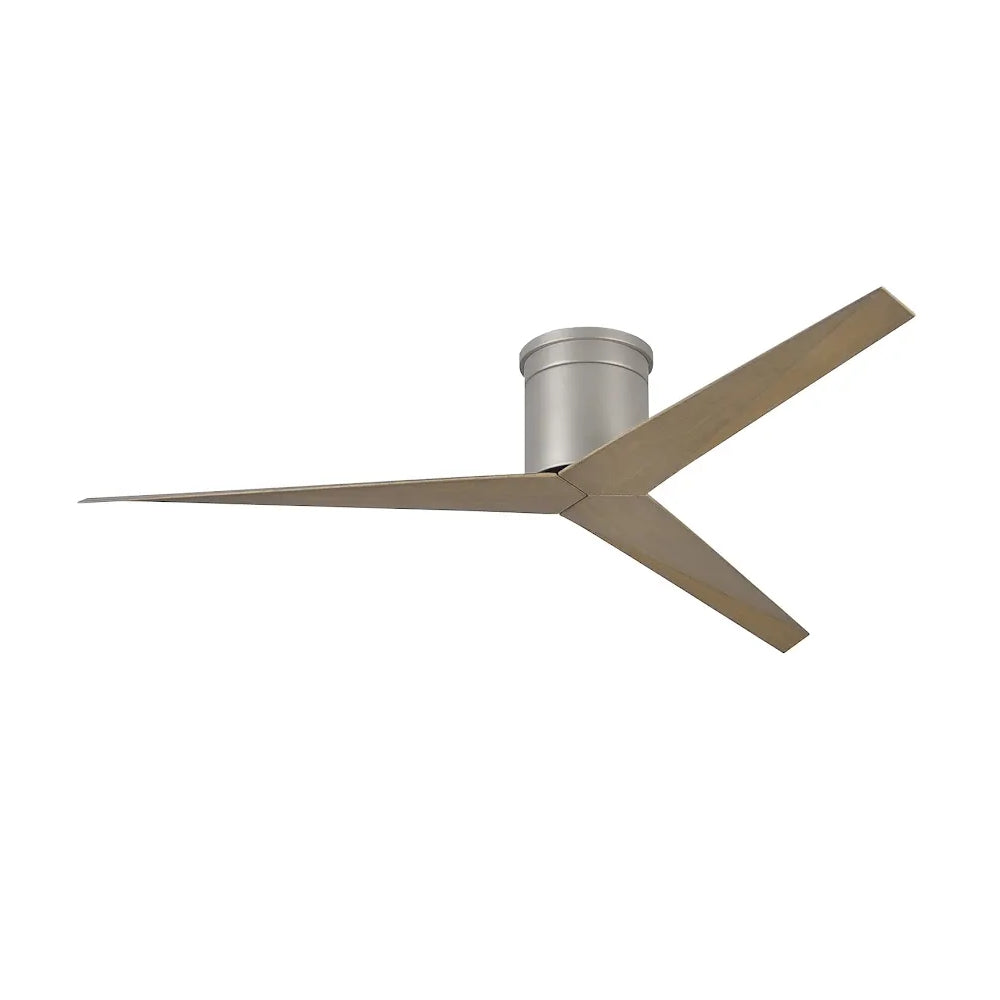

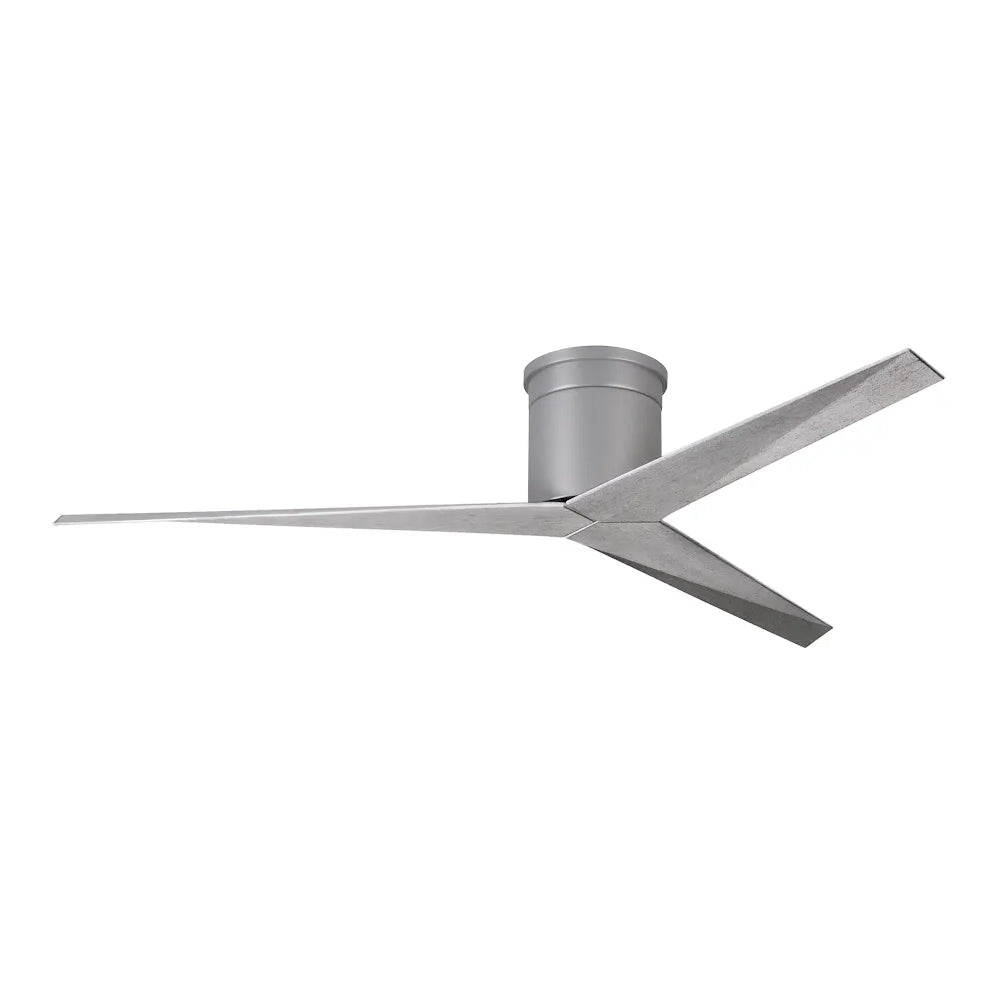

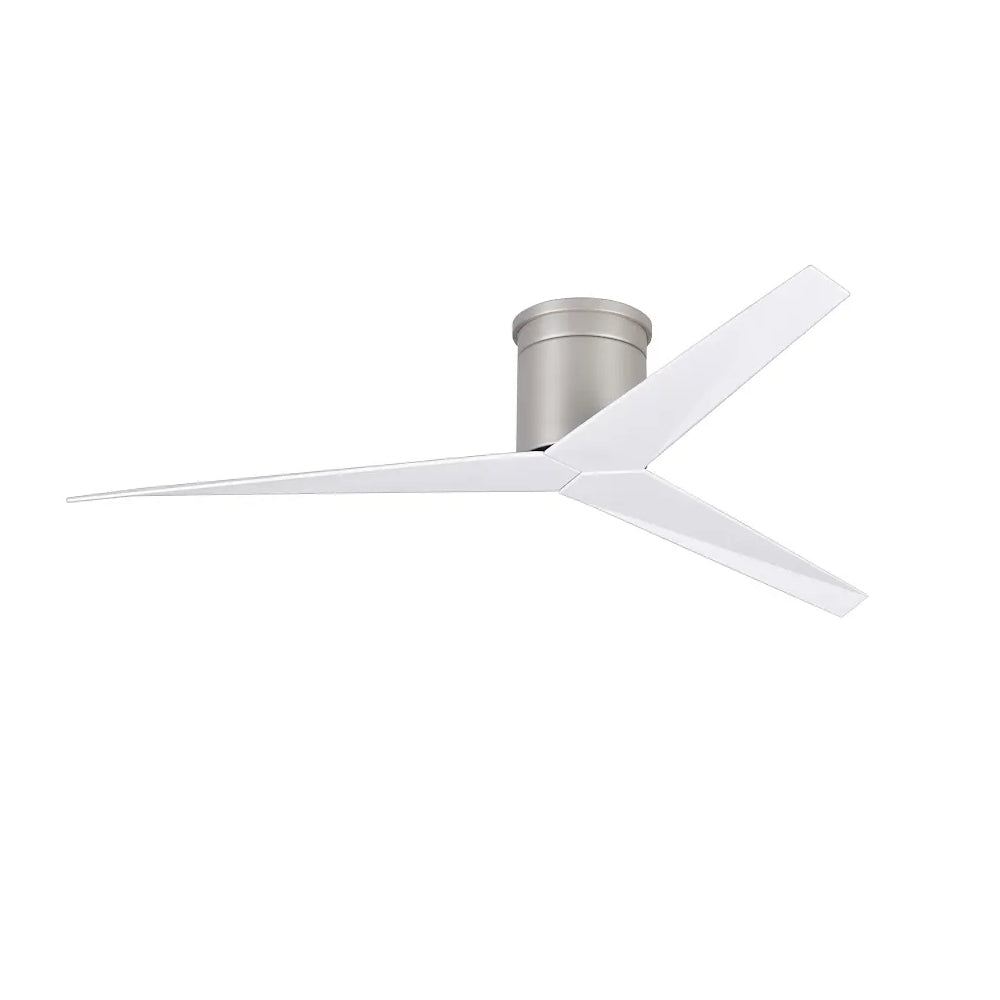

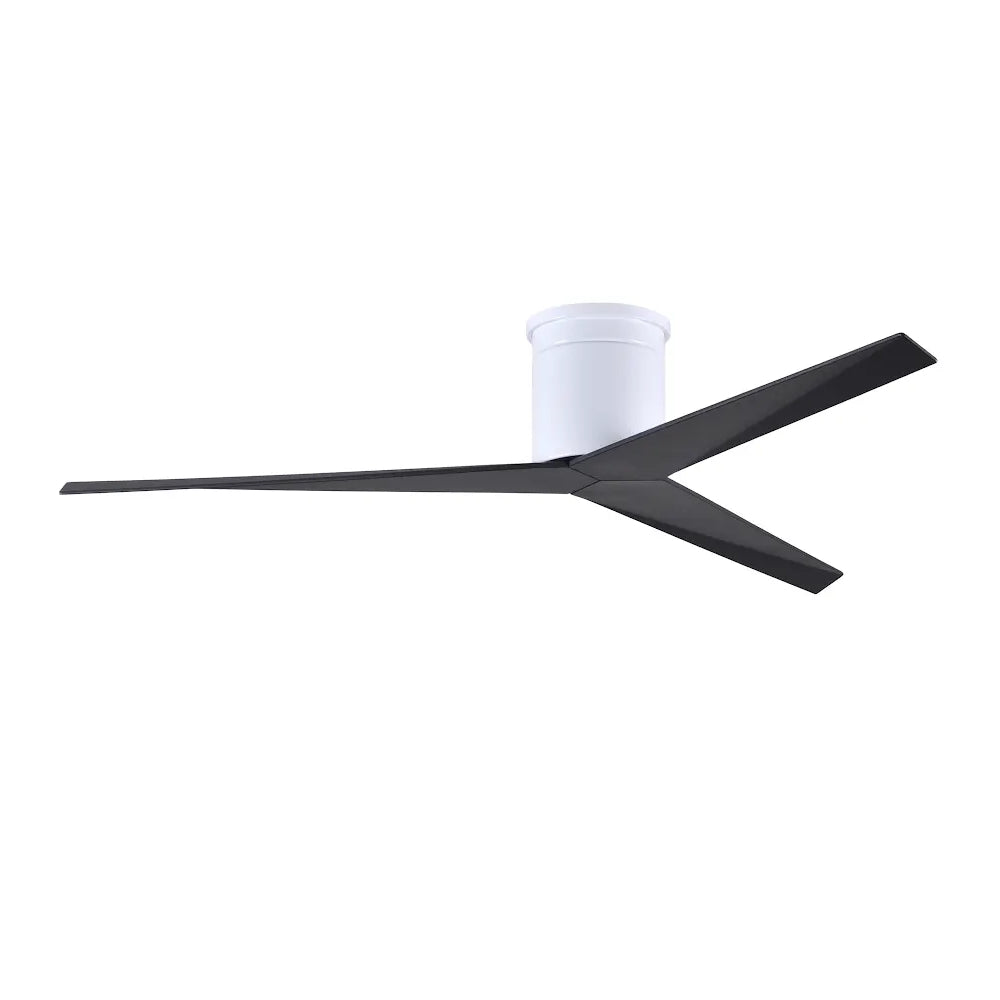

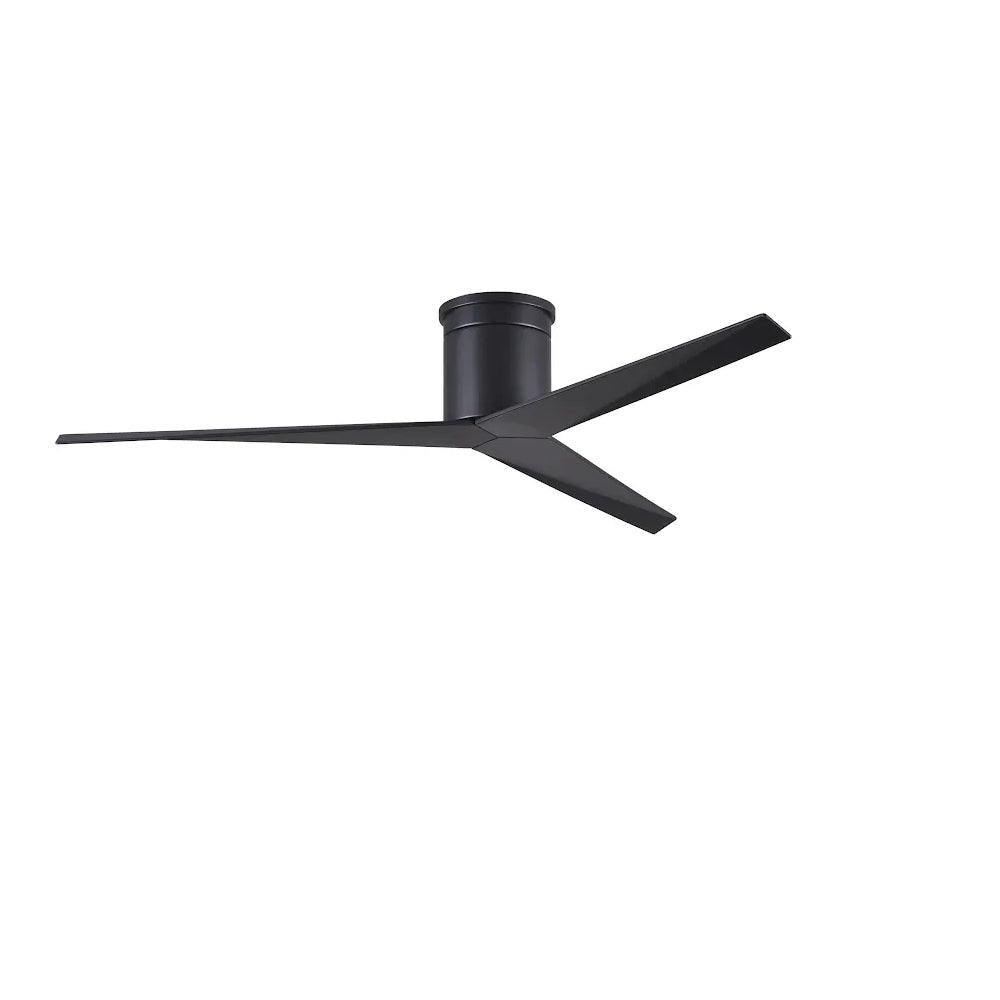

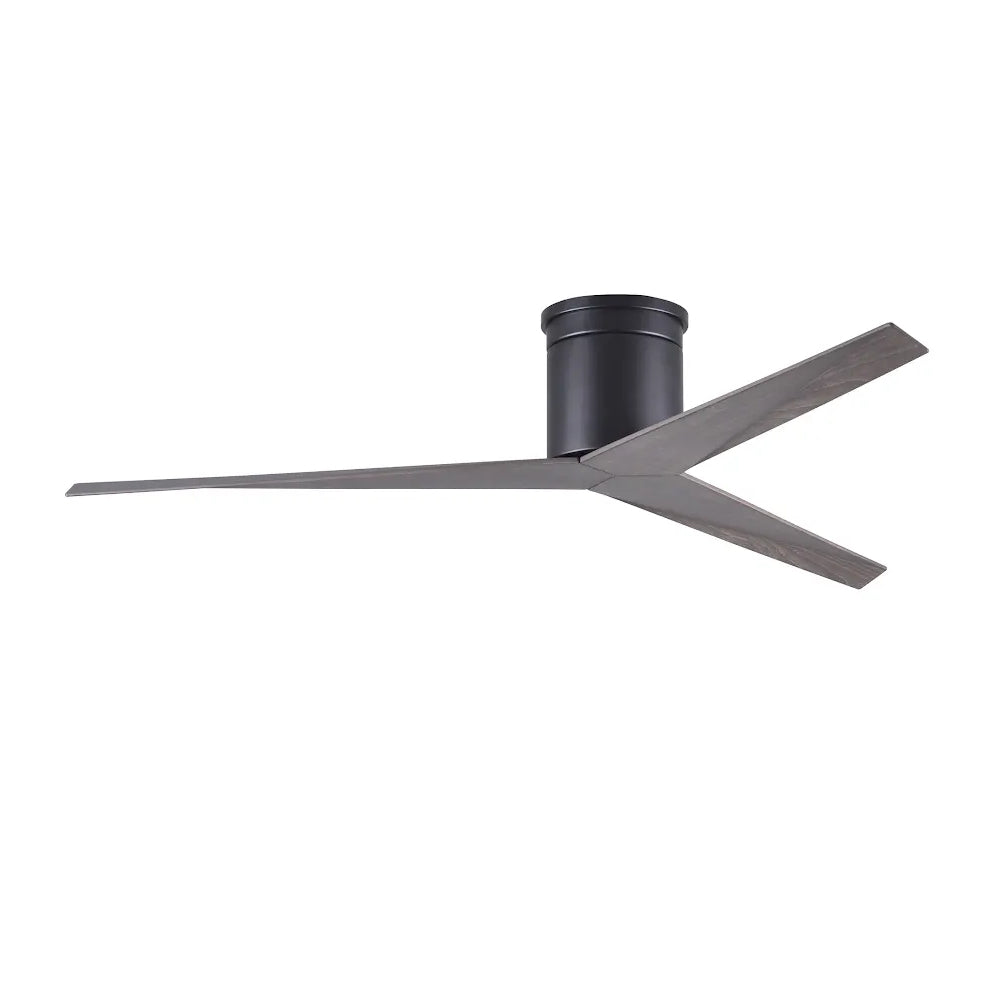

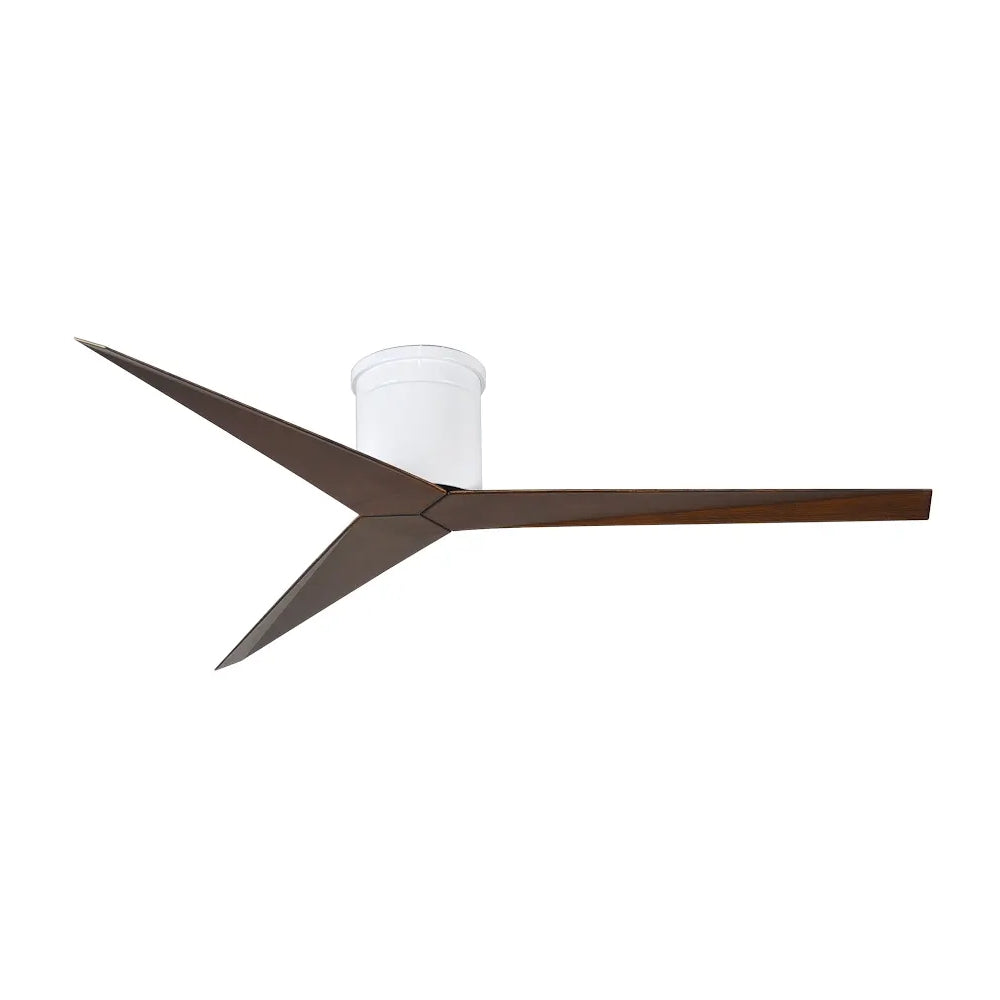

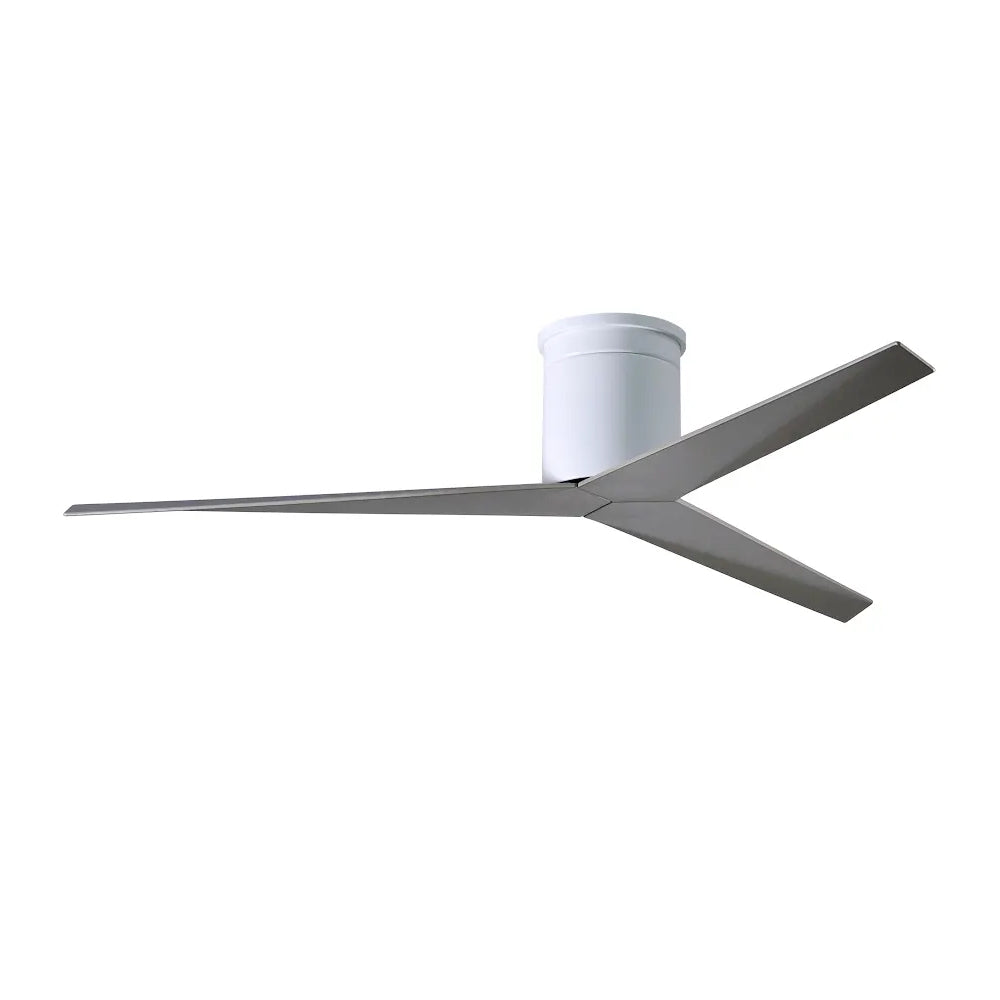

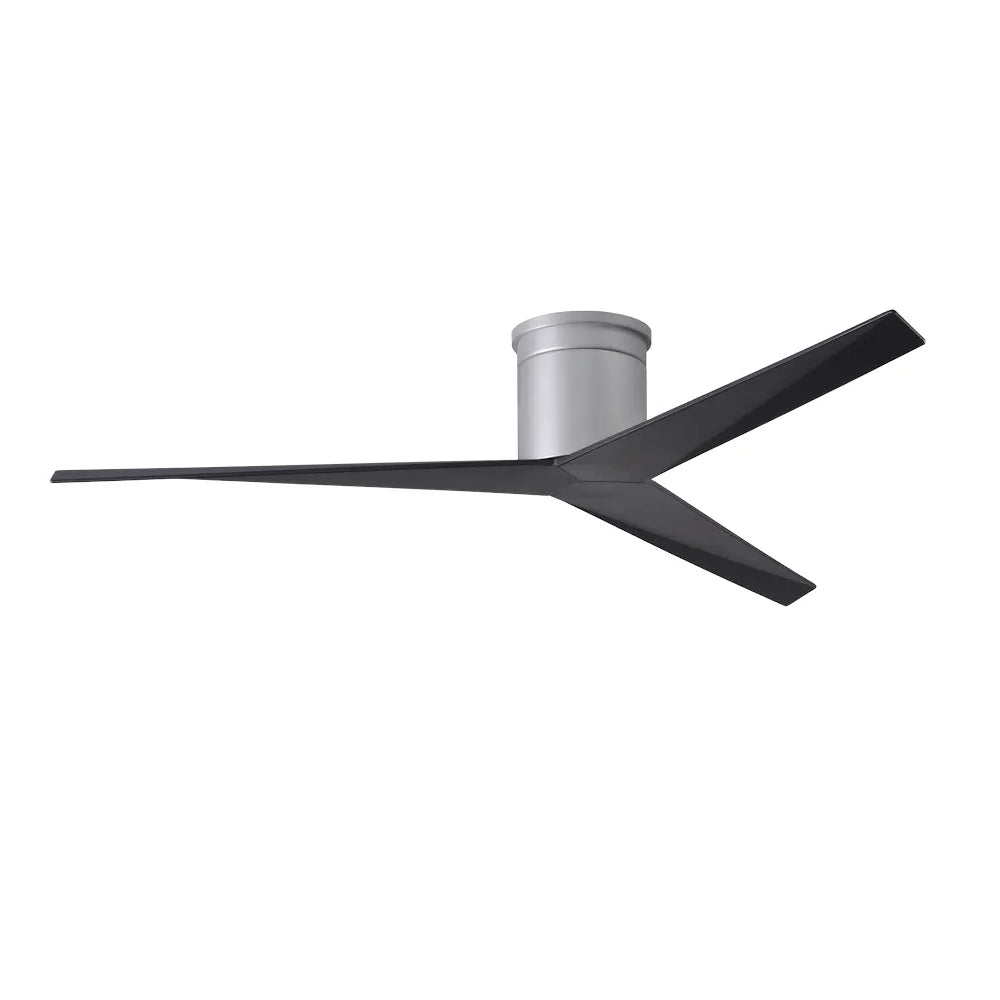

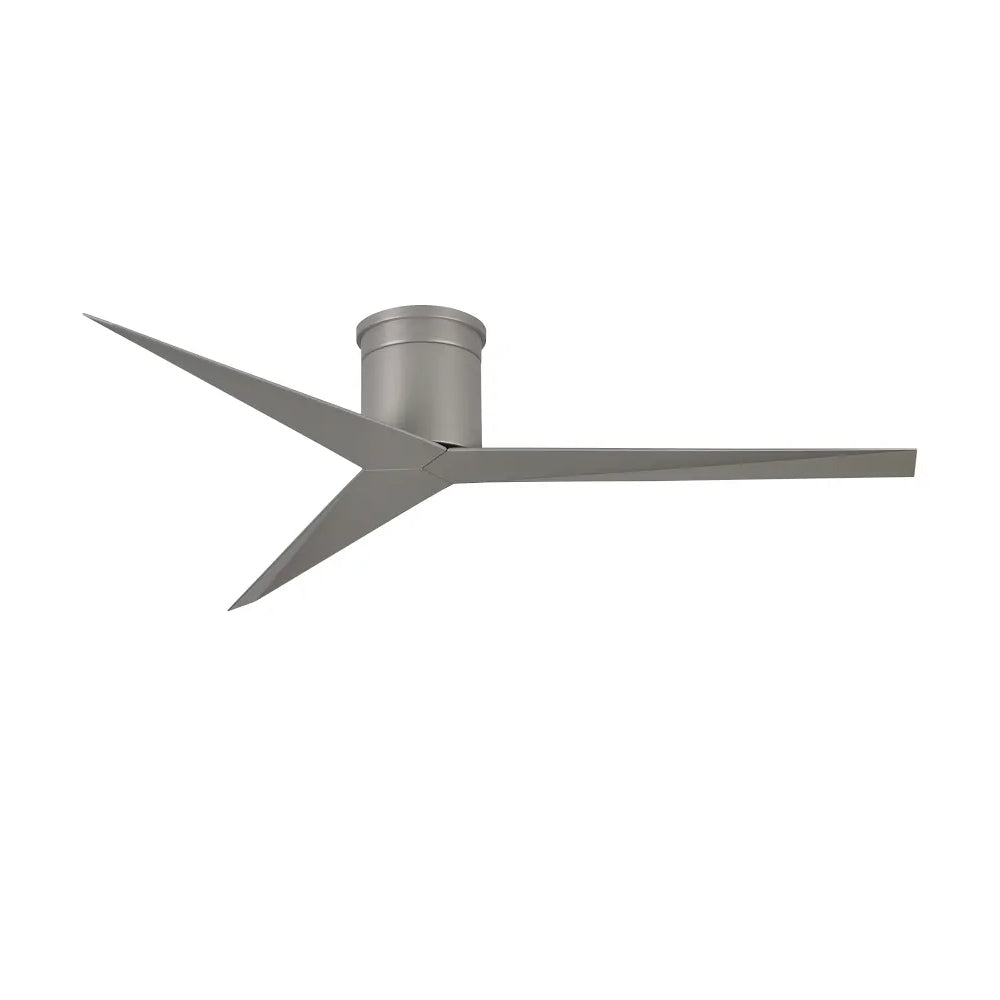

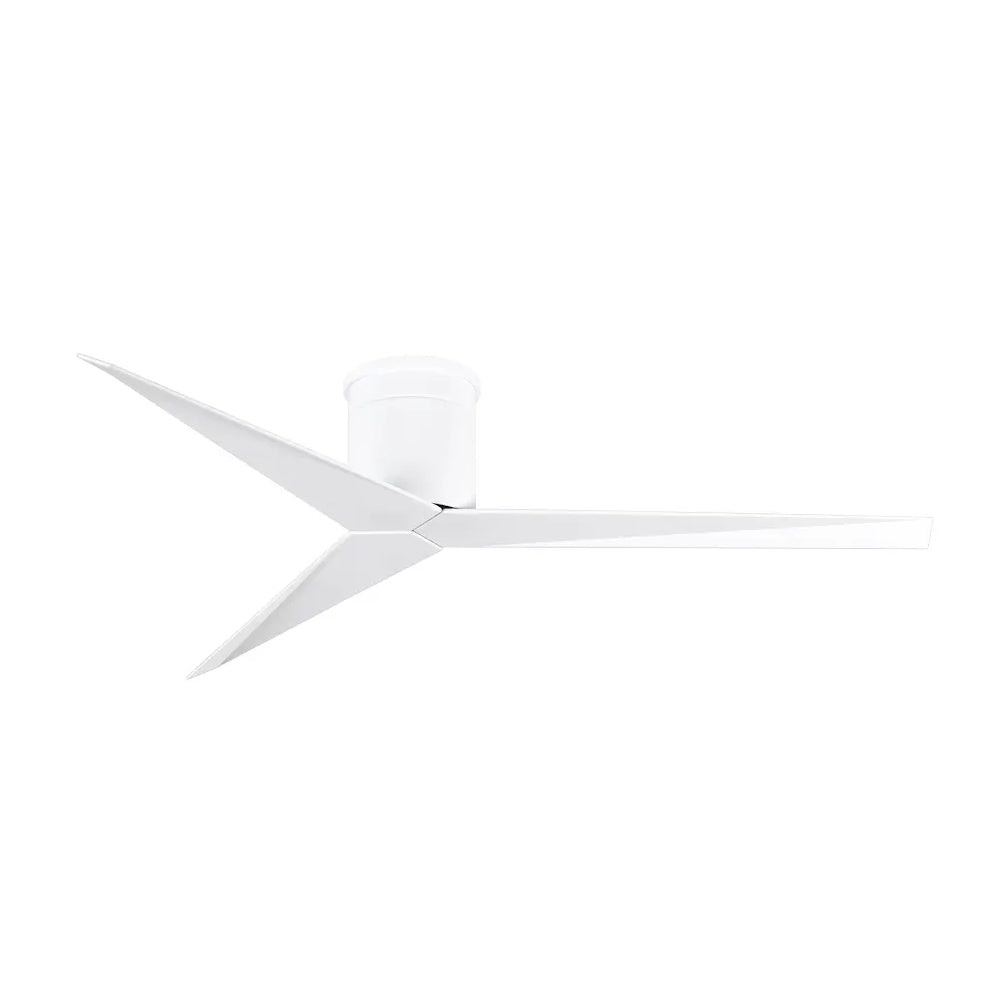

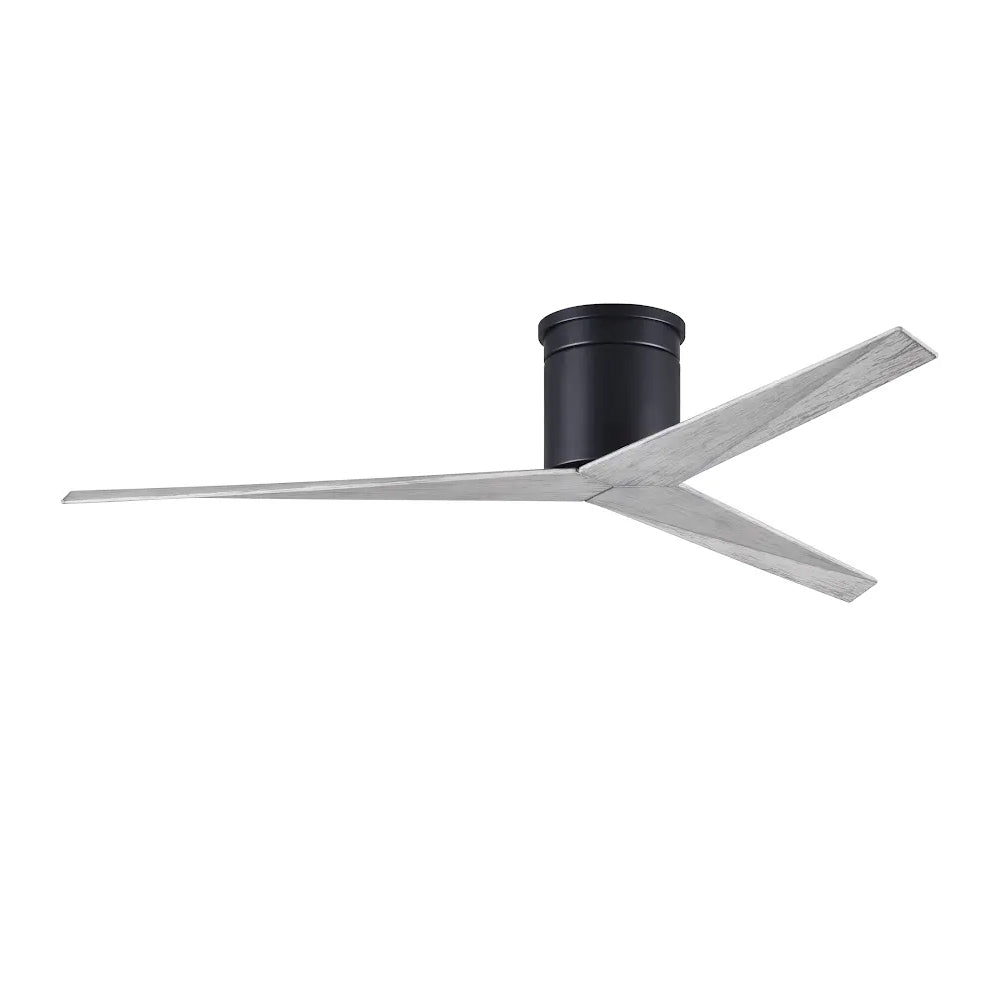

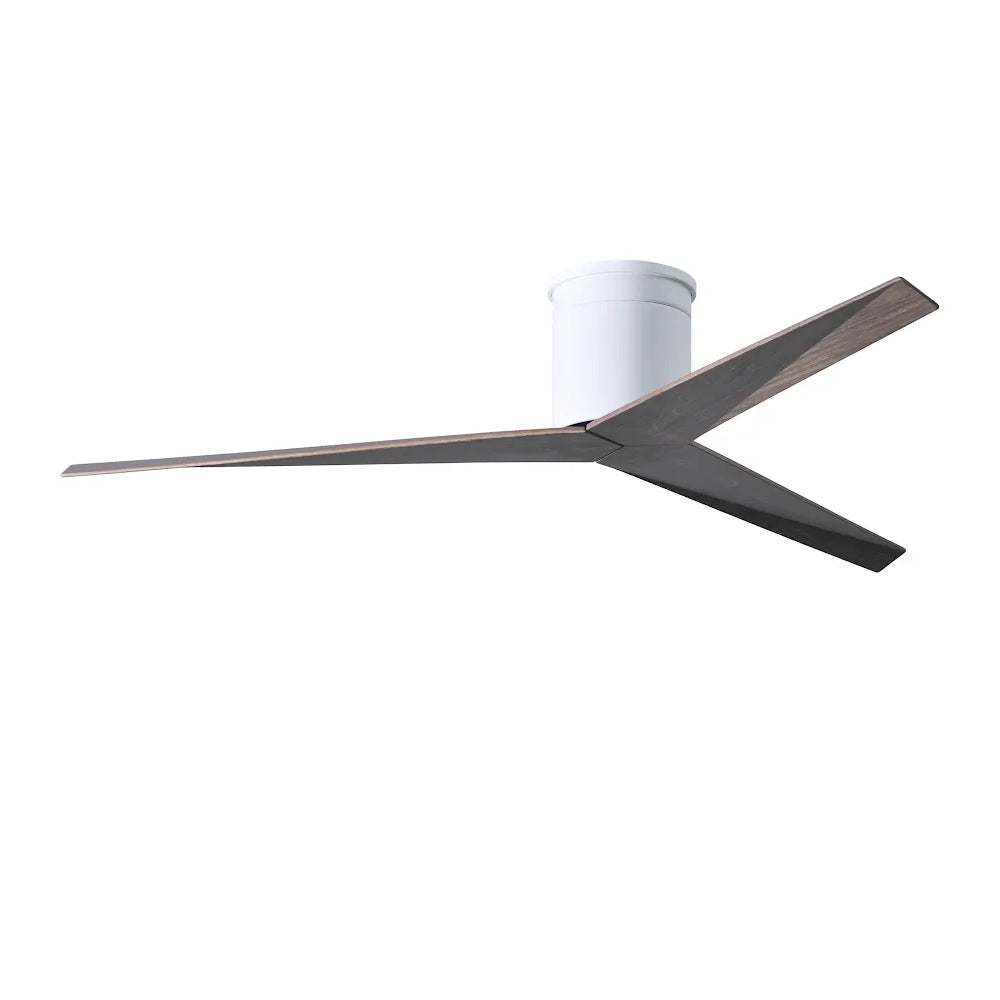

Atlas Eliza-H Three Bladed Rodless, Flushmount Paddle Fan

Designed by Chicago architect Stephen Katz in 2014, the Eliza-H ceiling mount fan blends a beautiful technically derived form with superior function and movement. The unique blade shape is designed to maximize air movement at the outer edge of the blade. The result is more efficient air velocity rings, less blade drag and greater motor optimization. Equally important is Eliza's stationary visual statement which combines modern utility with minimalist geometry.

Features

• 56" diameter.
• Energy efficient, ultra-quiet, six-speed and reversible DC motor with new reliable technology.
• Damp location finishes: brushed nickel and gloss white.
• Blades available in Gloss White, Brushed Nickel, Walnut, Barnwood or Gray Ash.
• Constructed of cast aluminum, polycarbonate and heavy stamped steel.
• Limited Lifetime Warranty
• Reverse on six-speed, hand-held and wall-mountable remote control.
• The Eliza-H is compatible with a proprietary decora-style accessory wall control: DC-WC.
• Damp location: All standard finishes. Not recommended for salt water/ocean front applications.

Specification Details

• IP Rating: IP20
• RPMs: 172
• CFM: 5236.43
• Watts: 30.5
• CFM/Watt: 171.69
• Amps: 0.5
• FTC Efficiency PDFs: EKH-FTC Label_072417
• Motor Speeds: 6-Speed
• Motor Type AC/DC: DC
• Included Control - Standard Equipment: Remote Control, Wall Control
• Number of Blades: 3
• Blade Pitch: 27 Degrees
• Integrated Light Kit, Optional Light Kit, No Light Kit: NO
• Socket Type: N/A
• Socket Number: N/A
• Max wattage: N/A
• Lumens: N/A
• CRI: N/A
• Kelvin Temperature: N/A
• Longevity of Lamp/Array in Hours: N/A
• Dimmable LK Yes/No: N/A
• Actual Weight Fan & Shipping Container in Lbs: 16 Lbs
• Length in Inches: 36
• Width in Inches: 16
• Width/Dia.: 56"
• Extension from Wall: N/A
• Overall Height: 10"
• Depth: 10"
• Downrod OD: N/A
• Location Rating: Interior/Exterior Damp
• 120 V Safety Rating: ETL, CETL

SKU	Height in Inches
EKH-BN-BN	13
EKH-BN-WH	13
EKH-BN-BW	13
EKH-BN-GA	13
EKH-BN-WN	13
EKH-WH-BW	14
EKH-WH-BN	14
EKH-WH-WH	14
EKH-WH-GA	14
EKH-WH-WN	14
