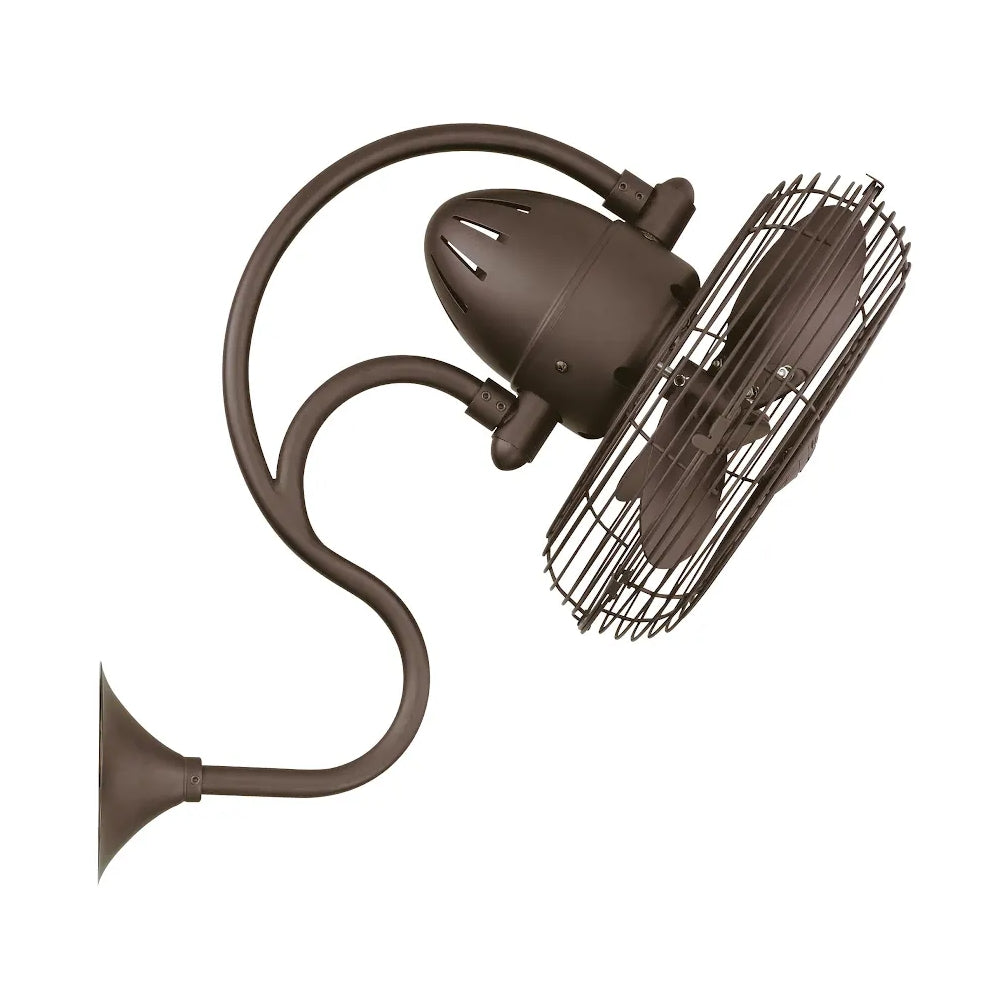

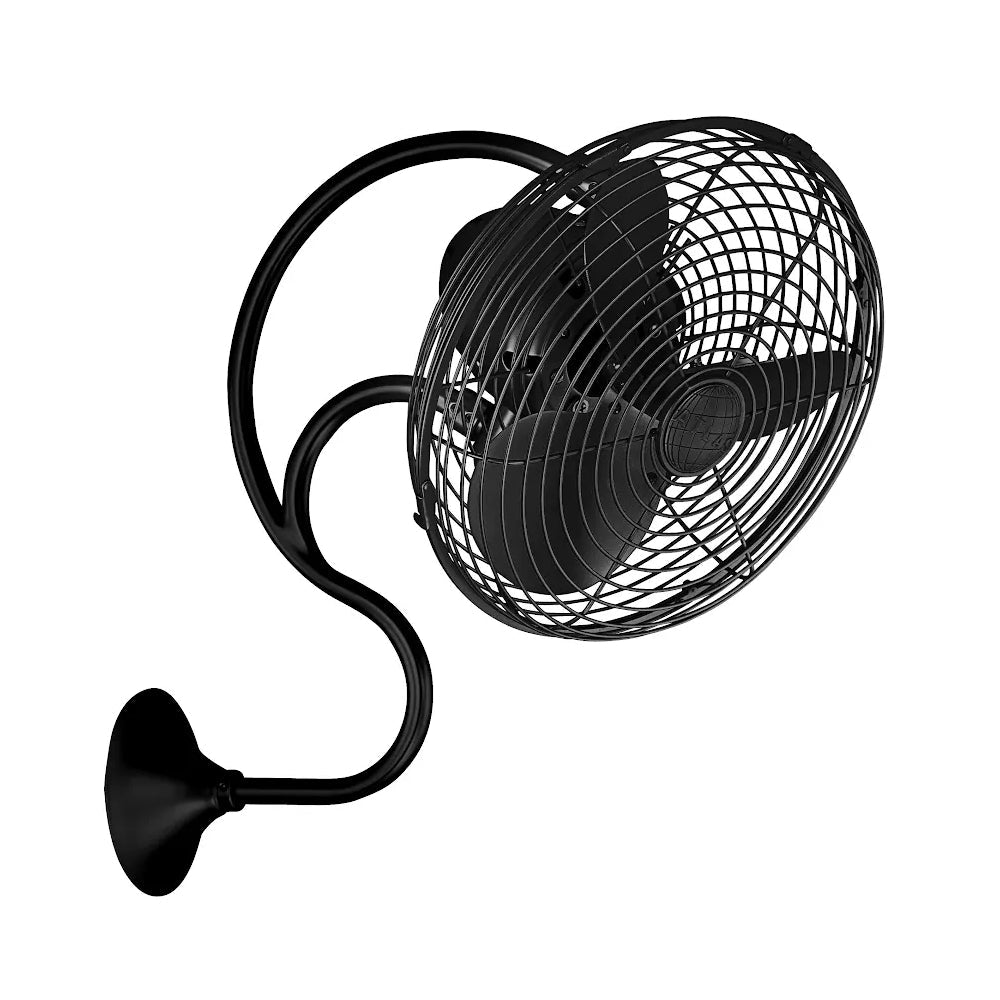

Atlas Melody Wall Fan

The Melody oscillating, 3-speed wall-mounted fan, designed in the Art Nouveau style with a grand, arching gooseneck, provides maximum multi-directional airflow. Melody can be mounted in small, awkward spaces or in front of HVAC ducts to make more efficient the heating, ventilation or air conditioning of any space.

Features

• Available in the following finishes: polished chrome, brushed nickel or textured bronze.
• Constructed of cast aluminum and heavy stamped steel.
• Limited Lifetime Warranty
• Equipped with hand-balanced metal blades and metal safety cages.3-speed wall control and side-mounted wall junction box are included.
• A three-wire system is needed to operate the oscillation mechanism independent of the fan blades.
• Standard Equipment:
• 3-speed decora style wall control
• Side-mounted wall junction box
• Remote control is possible. Please inquire for details.
• Damp location: All standard finishes. Not recommended for salt water/ocean front applications.

Specification Details

• IP Rating: IP20
• RPMs: 1495
• CFM: 1302.65
• Watts: 47.68
• CFM/Watt: 27.32
• Amps: 0.5
• FTC Efficiency PDFs: n/a
• Motor Speeds: 3-Speed
• Motor Type AC/DC: AC
• Included Control - Standard Equipment: Wall Control
• Number of Blades: 3
• Blade Pitch: 31 Degrees
• Integrated Light Kit, Optional Light Kit, No Light Kit: NO
• Socket Type: N/A
• Socket Number: N/A
• Max wattage: N/A
• Lumens: N/A
• CRI: N/A
• Kelvin Temperature: N/A
• Longevity of Lamp/Array in Hours: N/A
• Dimmable LK Yes/No: N/A
• Actual Weight Fan & Shipping Container in Lbs: 16 Lbs
• Length in Inches: 27
• Width in Inches: 16
• Height in Inches: 16
• Width/Dia.: 13"
• Extension from Wall: 20"
• Overall Height: 20"
• Depth: N/A
• Downrod OD: N/A
• Location Rating: Interior/Exterior Damp
• 120 V Safety Rating: ETL, CETL
