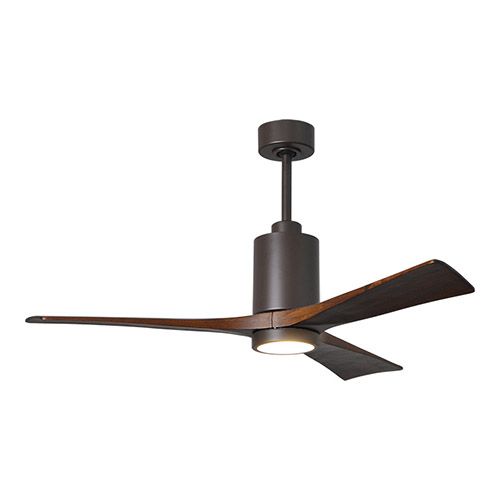

Atlas Patricia-3 Three Bladed Paddle Fan in Textured Bronze with Walnut Tone Blades and LED Light kit.

A complement to any commercial or residential space, the Patricia-3 seamlessly combines innovation with simple, refined design. Its elegant aesthetic belies its robust construction. Solid wood blades revolve arounda balanced, cylindrical DC motor housing. Air is circulated efficiently with barely more than a whisper. An eco-conscious LED light kit completes the package, making Patricia-3 sophisticated, efficient and green.

Features

• Available in 42", 52", 60" diameter with three solid wood, walnut-stained machine-cut blades.
• Energy efficient, ultra-quiet, six speed, reversible DC motor with new, reliable technology.
• Constructed of cast aluminum and heavy stamped steel. Limited Lifetime Warranty
• Standard equipment:
• One downrod of 10". 5", 20", 30", 48" or 72" downrods are also available.
• Vaulted ceiling mount canopy for up to 30 degrees.
• Reverse on six-speed, hand-held and wall-mountable remote control.
• Integrated 16W LED light is dimmable and replaceable. 2850K. CRI: 76. Hours: 36,000 Lumens: 386
• The Patricia-3 is compatible with flat or vault celings and can be mounted with any one of the following downrod lengths: 5", 10", 20", 30", 48", 72"
• The Patricia-3 is also compatible with a proprietary decora-style accessory wall control: DC-WC.
• Damp location: All standard finishes. Not recommended for salt water/ocean front applications.

Specification Details

• IP Rating: IP20
• Motor Speeds: 6 Speed
• Motor Type AC/DC: DC
• Included Control - Standard Equipment: Remote Control, Wall Control
• Number of Blades: 3
• Blade Pitch: 15 Degrees
• Integrated Light Kit, Optional Light Kit, No Light Kit: Integrated
• Socket Type: Integrated LED
• Socket Number: Integrated LED
• Max wattage: 16W
• Lumens: 690
• CRI: 90
• Kelvin Temperature: 3075
• Longevity of Lamp/Array in Hours: 60000
• Dimmable LK Yes/No: YES
• Actual Weight Fan & Shipping Container in Lbs: 20
• Length in Inches: 28
• Width in Inches: 12
• Height in Inches: 20
• Extension from Wall: N/A
• Overall Height: 13" Plus Downrod
• Depth: 13" Plus Downrod
• Downrod OD: 1"
• Location Rating: Interior/Exterior Damp
• 120 V Safety Rating: ETL, CETL

SKU	RPMs	CFM	Watts	CFM/Watt	Amps	FTC Efficiency PDFs	Width/Dia.
PA3-TB-WA-42	232	4285.66	16.6	258.17	0.5	42 in PA3,5-FTC Label_072417	42"
PA3-TB-WA-52	219	6076.86	32.03	189.72	0.47	52 in PA3,5-FTC Label_072417	52"
PA3-TB-WA-60	156	6832.64	31.72	214.4	0.47	60 in PA3,5-FTC Label_072417	60"
